Nodwell FN60

K

kitimatdude

New member
Hi,
I'm fairly new to this forum. I have owned my nodwell for a few years. It used to be owned by a ski club that was trying to make a ski hill. They never got it done and this nodwell just sat parked, blocked in by a dump truck for 10-12 years. I found it and gave it a good home. I have been fixing it off and on and using it once in a while for a few years. here, i'll put up some pics:

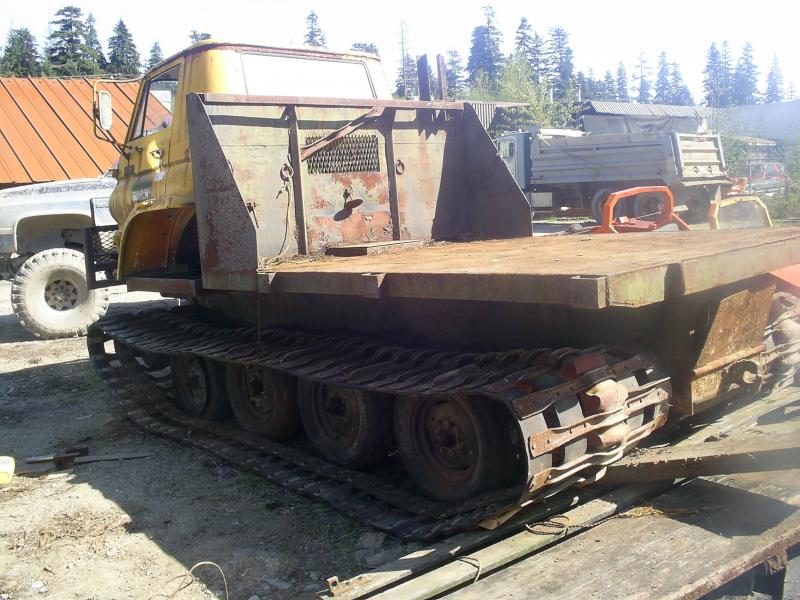

it was kinda rough, still is actually

Ok that post went well I'll add some more:

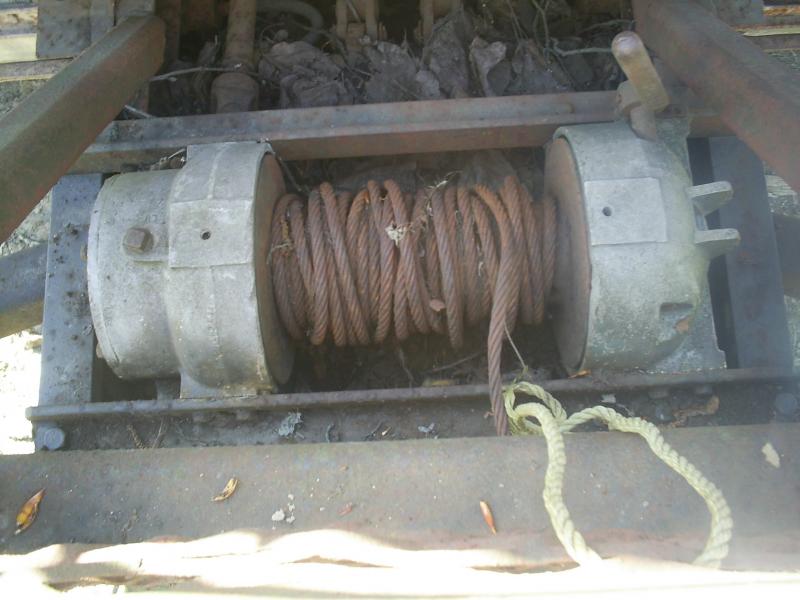

The 10,000lb pto winch

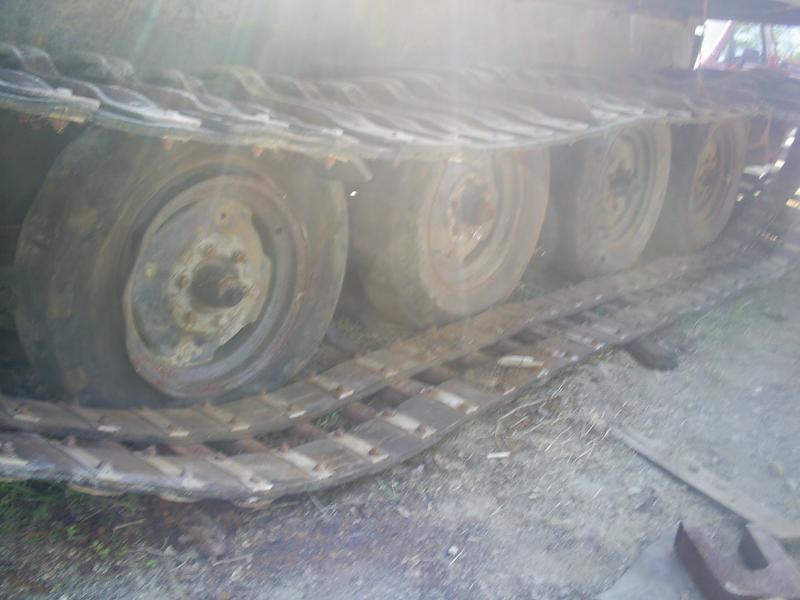

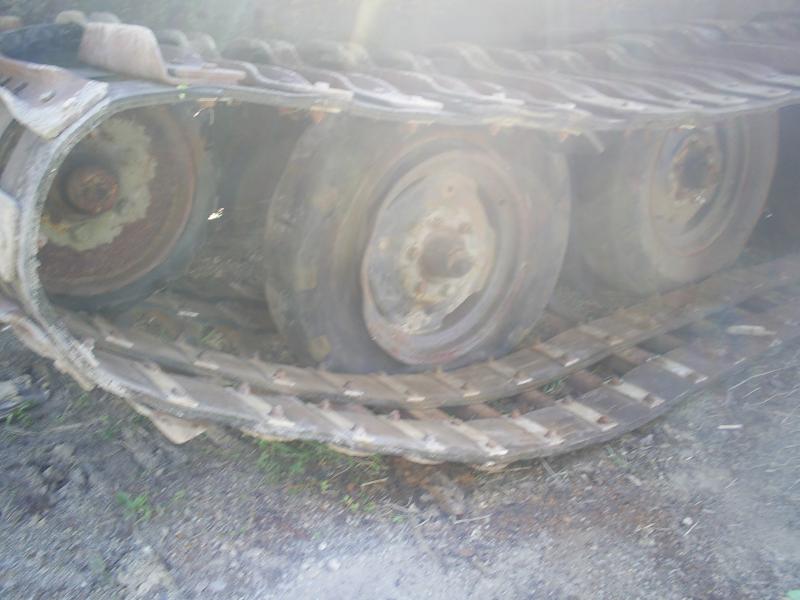

The awesome track and tires/rims

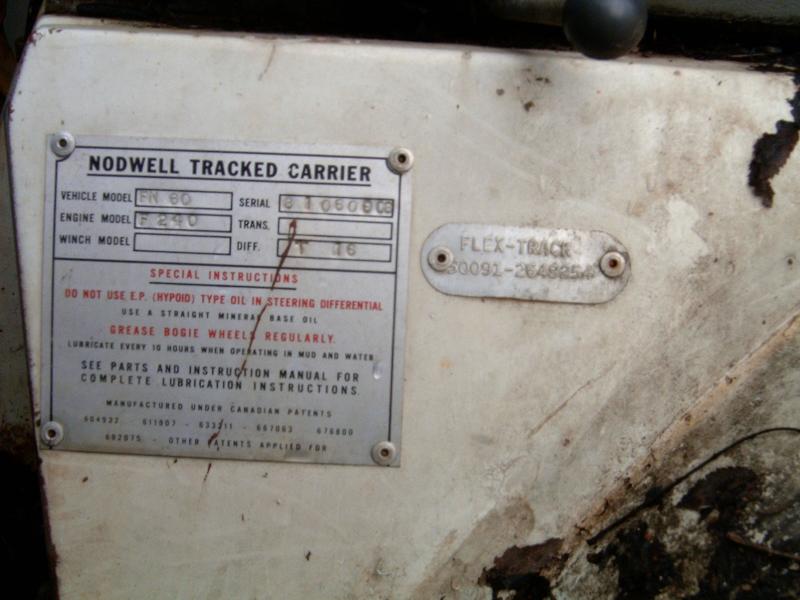

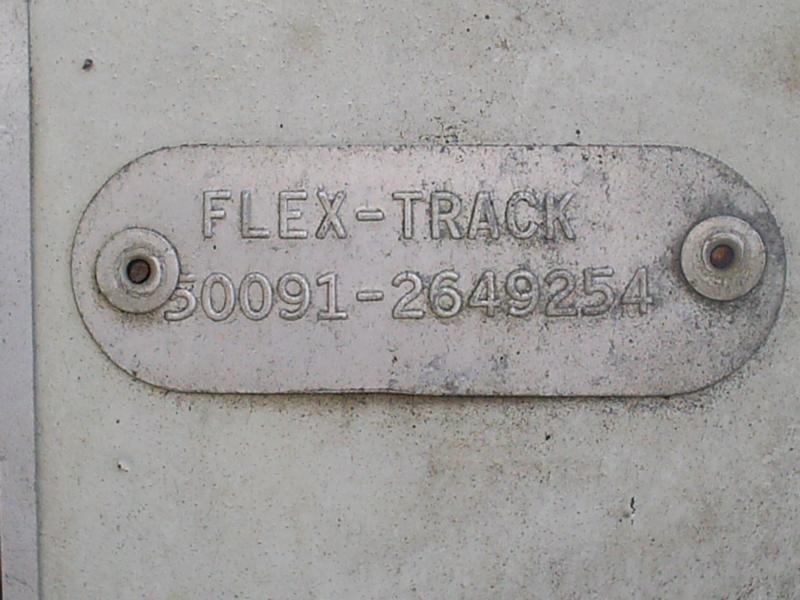

all the tags

The spedometer goes up to 100MPH! and only .9 miles on it! Its like new right? No, it was never hooked up.

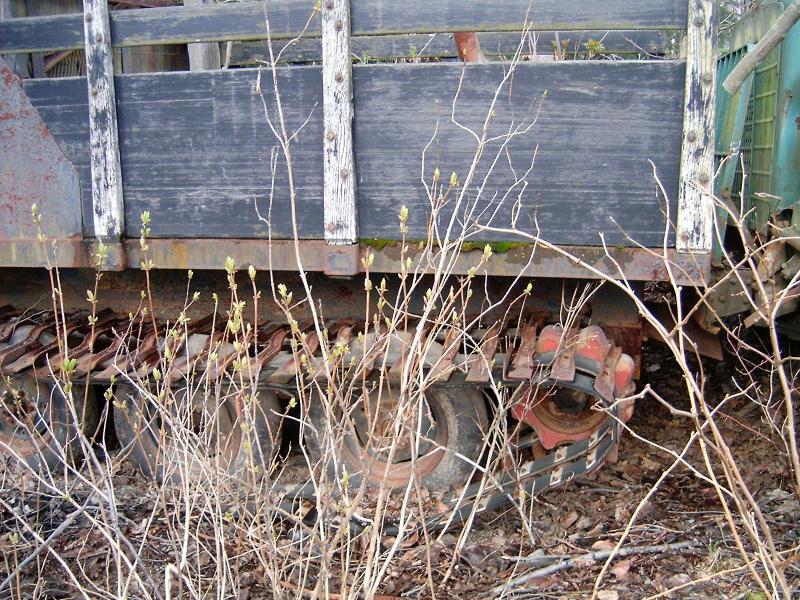

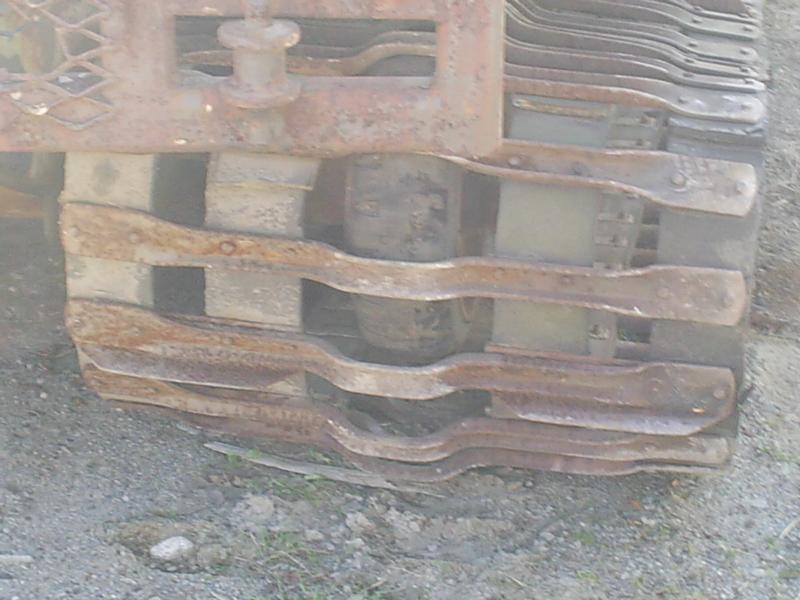

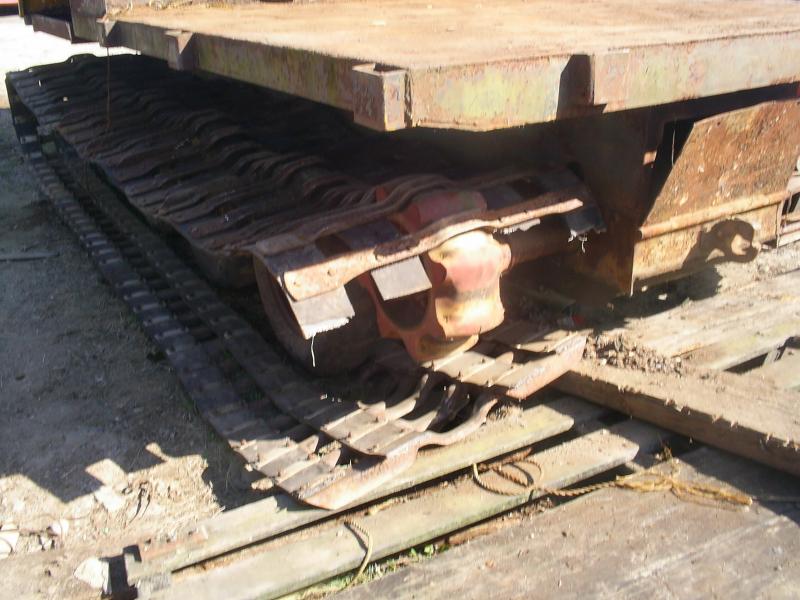

note the track before and after I got it running and tried the steering...

totally dry rotted.

the dif

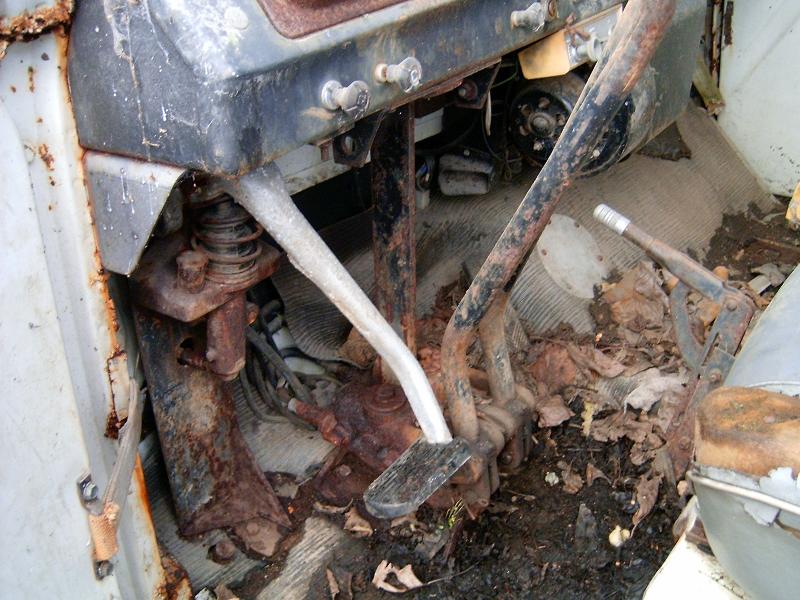

steering slave cylinder

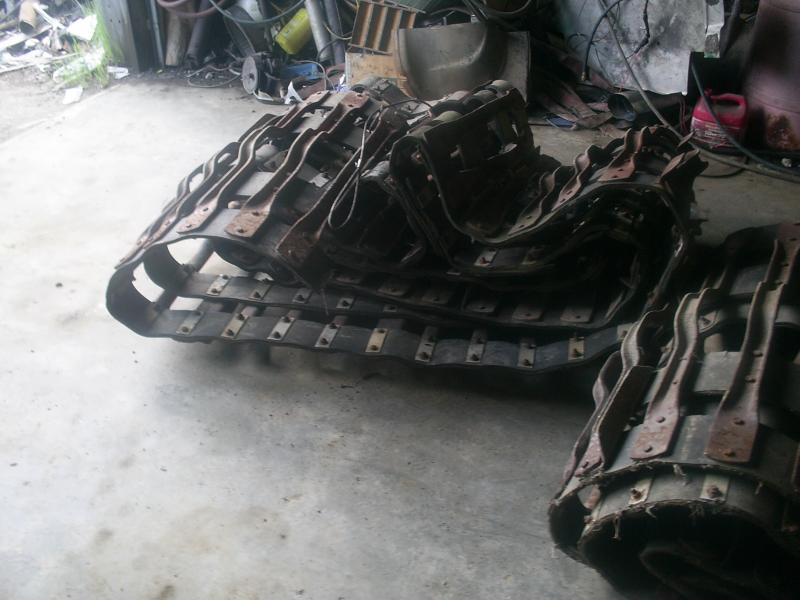

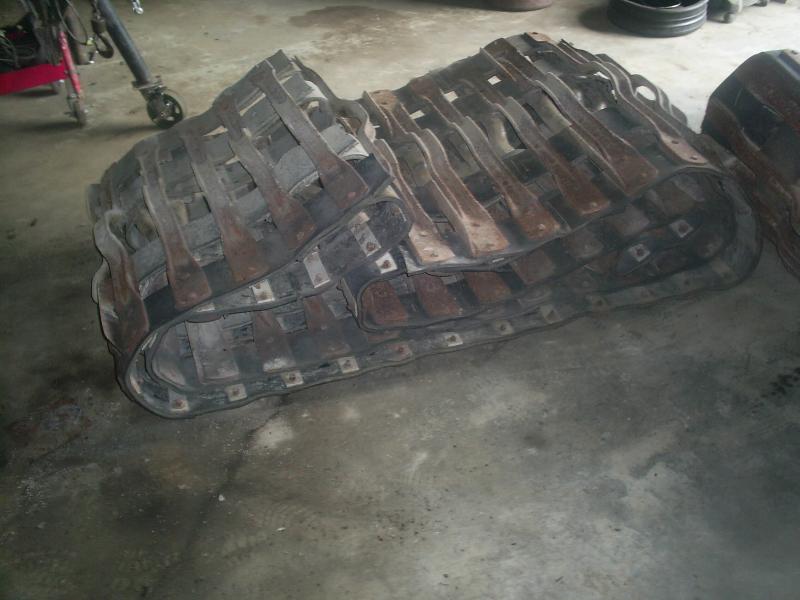

those rotten tracks were the first thing to go:

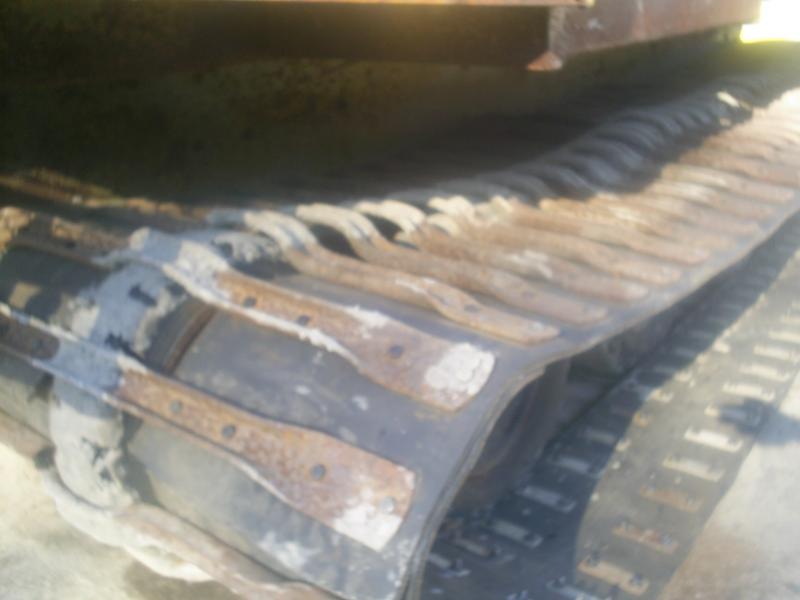

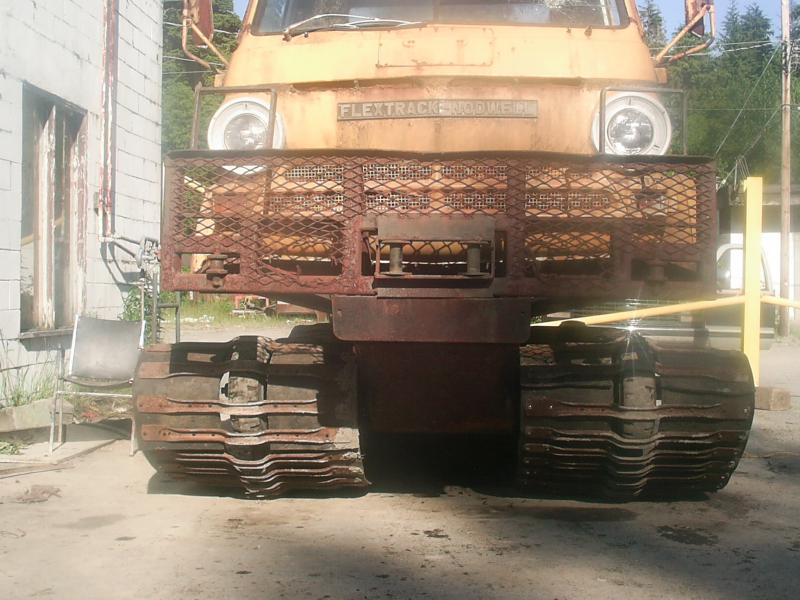

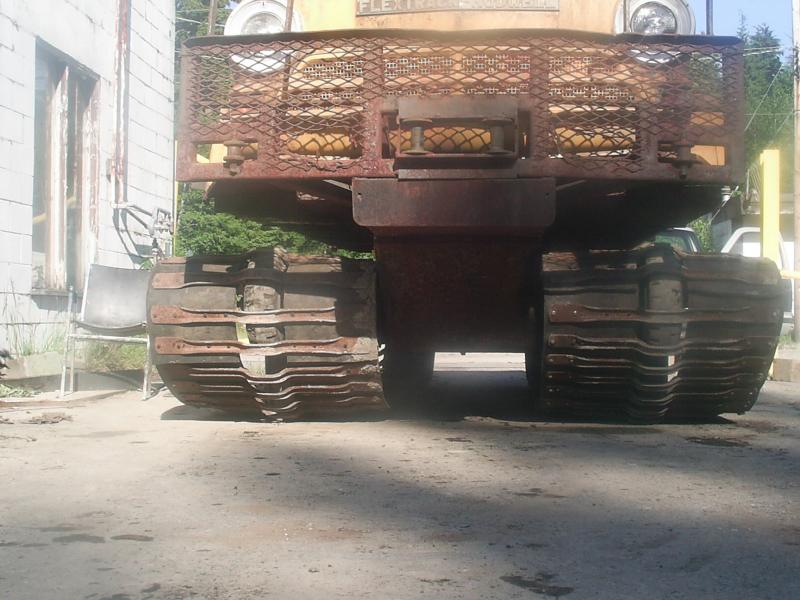

back together

I modified them a bit. I made them 2 straps instead of 4. and about an inch wider. This job was a lot of work, those tracks are 17 feet long...

Those are all the pics I have already hosted and handy.
It looks mostly like that right now.
Recent work:
I shortened both tracks by 1 grouser each. and tensioned.
I rebuilt/repaired both steering slave cylinders again.
I replaced the flex hoses to the slave cylinders.
flushed/bled/tested/adjusted/adjusted/adjusted the steering brakes.

It still needs:
bodywork
paint
windows
might be a coolant leak
recover the bench seat
maybe some tires

I have several projects on the go at once so I work on the one that is the most fun at the time usually....

I don't think its a swap. when I was looking for info on it and pictures I found one at an auction site with the same cab listed as a 2002 model.

Ok it looks like I lost some pictures above^^
so I'm going to try uploading them to this site.

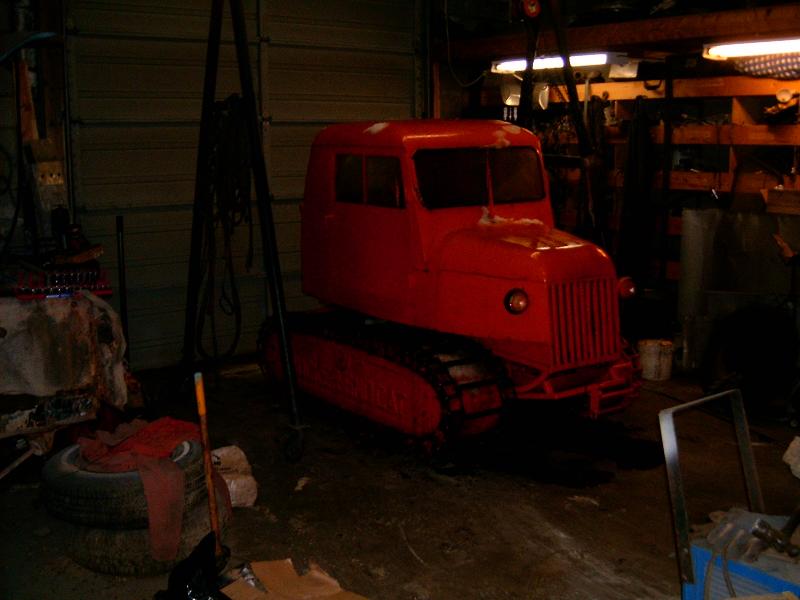

These are my old kitten just before I sold it.

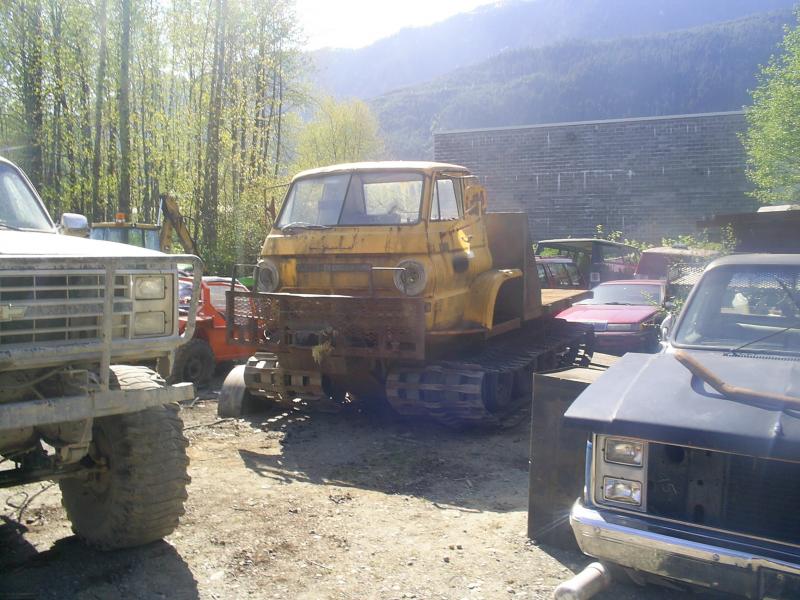

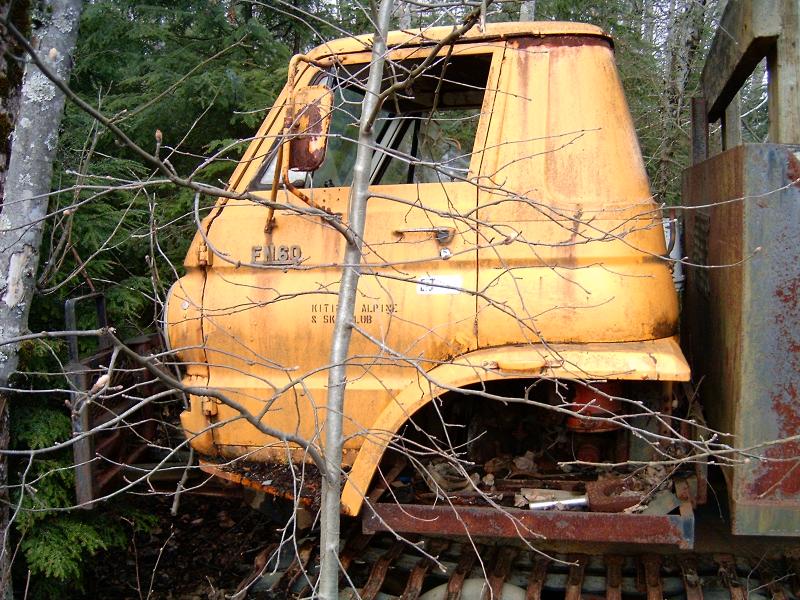

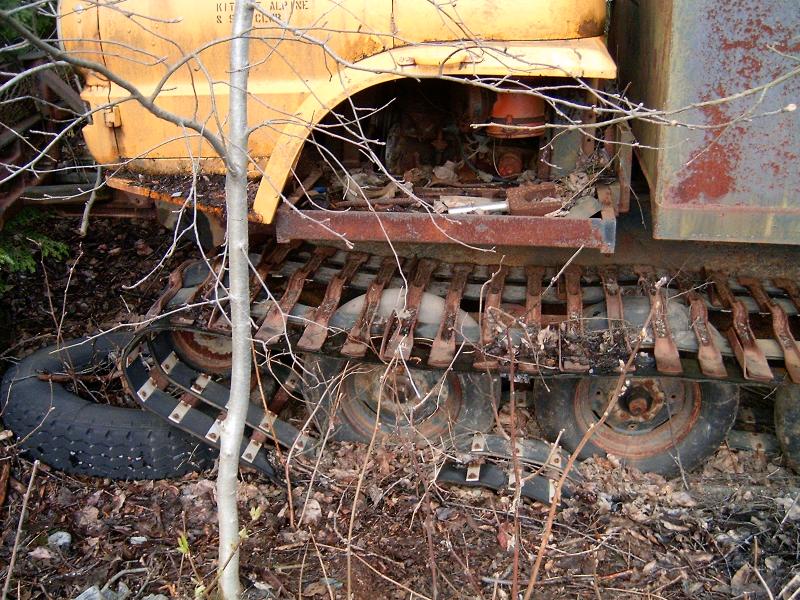

Ok that went well, here are a few pics of the Nodwell as I found it:






It took me a while to find out the owner etc. These pics are from April 9 05.

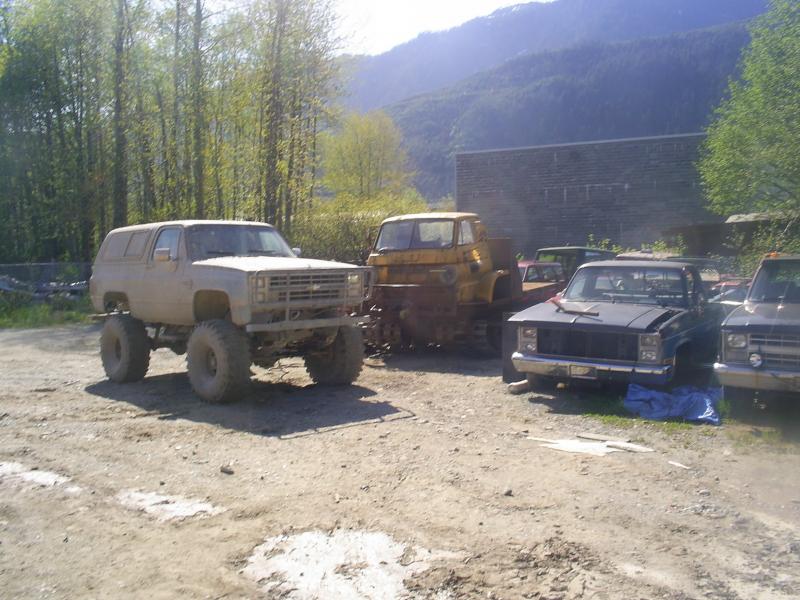

OK flash forward a year and I have it at my yard. These pics are from May 15 06. We played around with the engine and got it running with a fresh battery and a new coil.S4020108.jpg

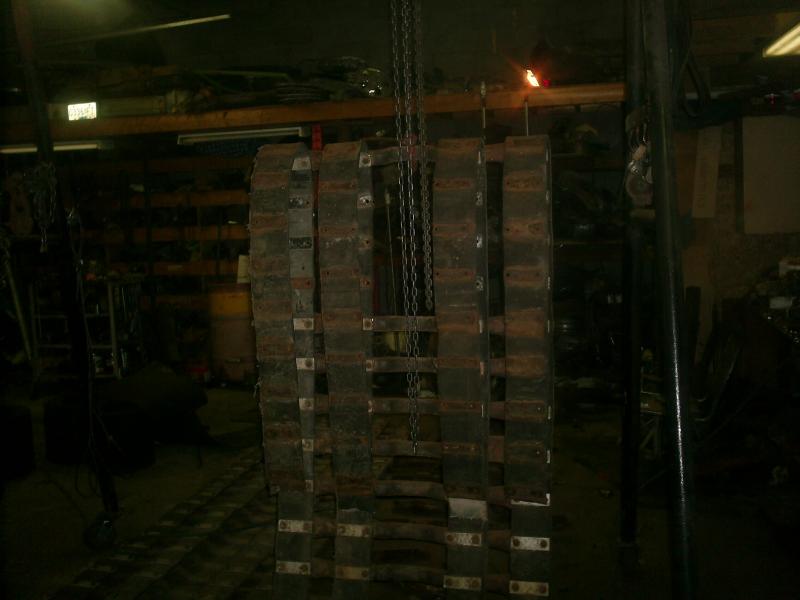

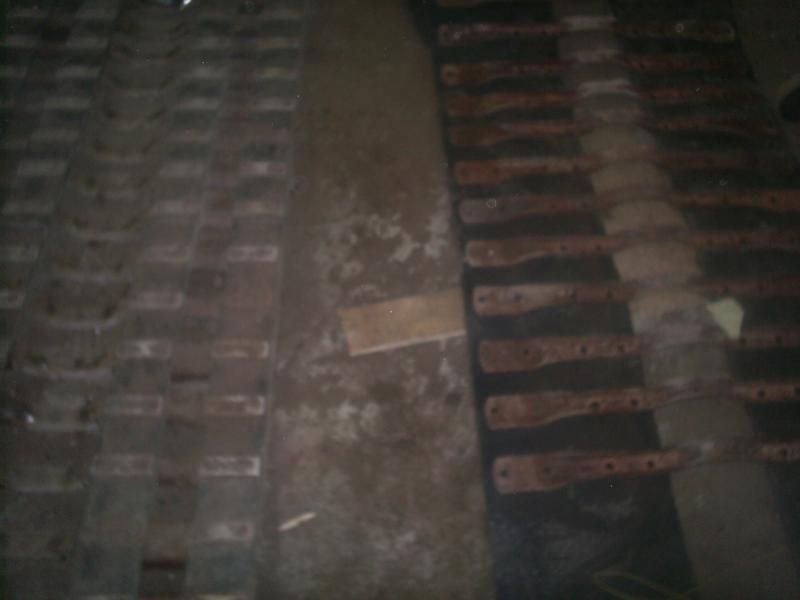

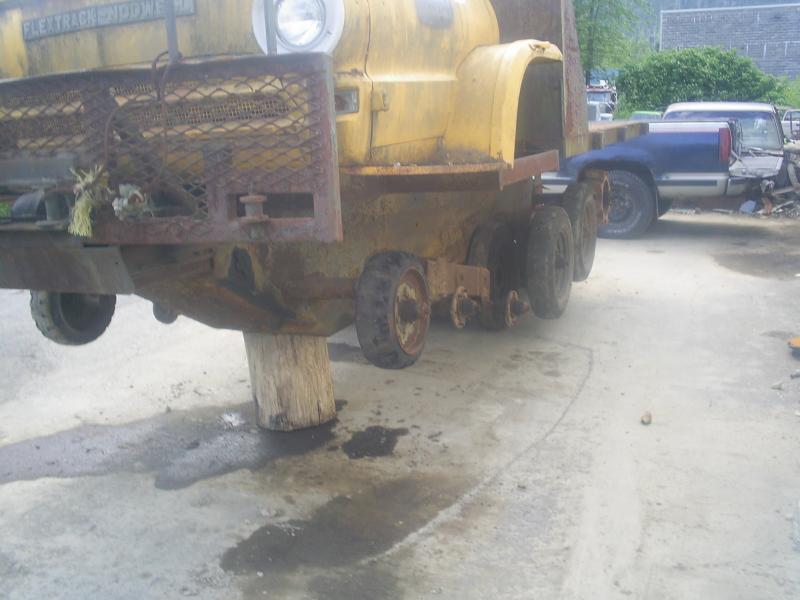

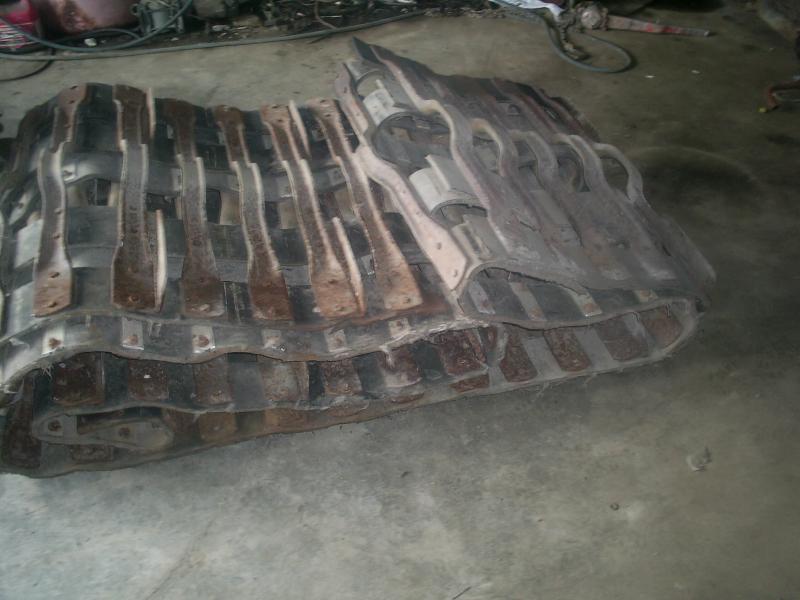

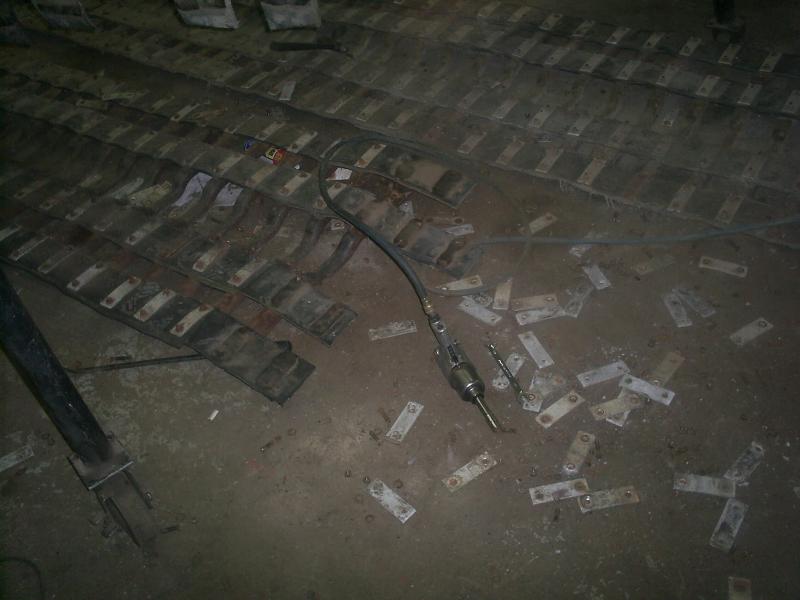

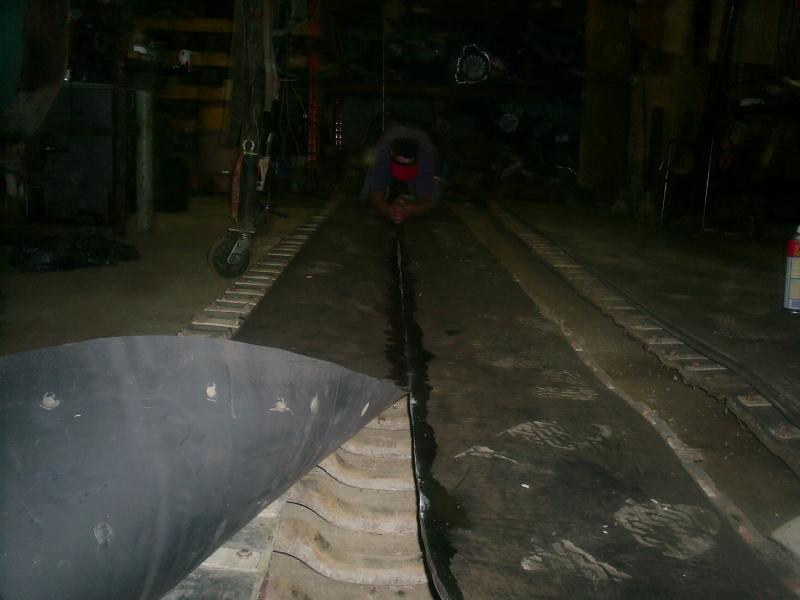

So after that slow start the next job was getting the old tracks off and apart. then getting some conveyor belt and making go back together. This is a lot of work. I had a few friends and my Dad helping. (edit: pics are from June 8 06)

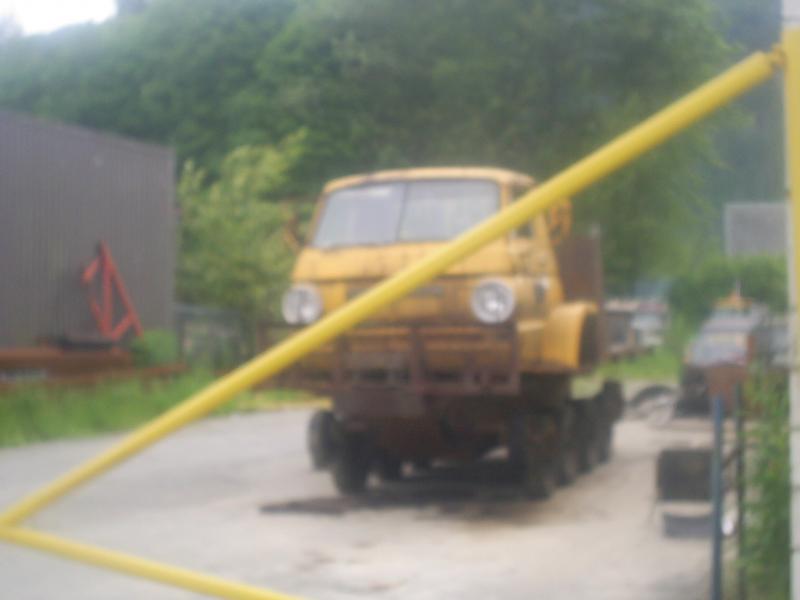

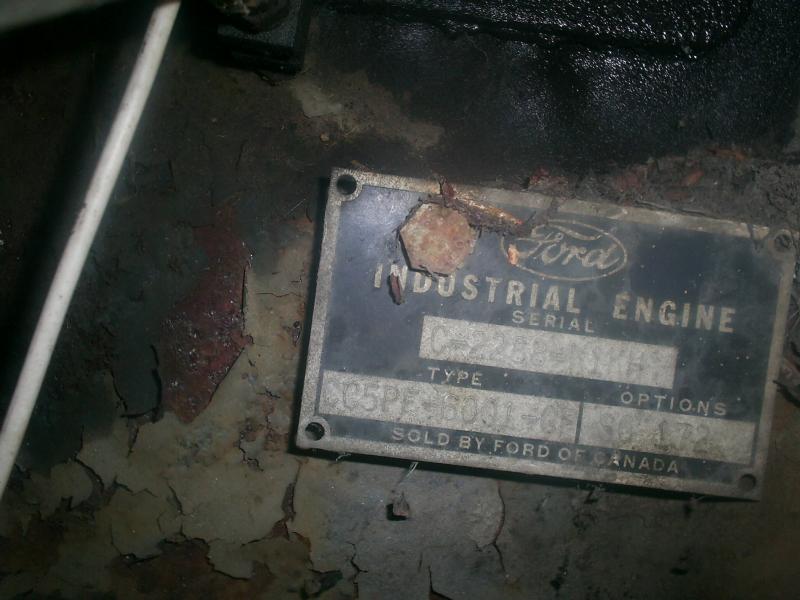

Yeah I liked the look of it. I also took a few pics of the engine plate with the idea of looking up parts and or identifying it.S4020307.jpg






Next it was action time! Video!
july 16 06
[ame="http://www.youtube.com/watch?v=sidLORSQNPU"]YouTube - nodwell[/ame]
july 17 06
[ame="http://www.youtube.com/watch?v=DUgaBcwusM4"]YouTube - nodwell ii the donut[/ame]

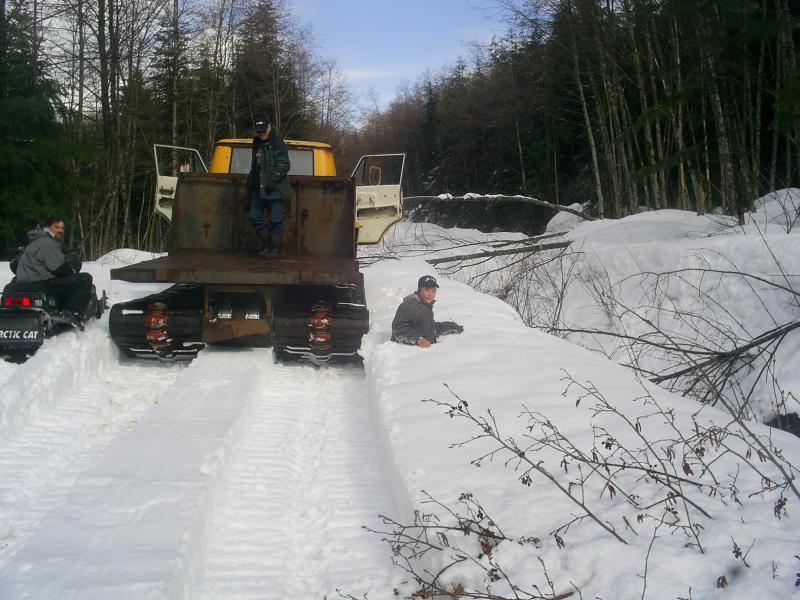

Then I put it to work:
August 6 06:
[ame="http://www.youtube.com/watch?v=rna_7xIS4cE"]YouTube - taking a rock for a drag.AVI[/ame]

August 6 06 was a very long day for me.
[ame="http://www.youtube.com/watch?v=Mo7fa9BhCgg"]YouTube - nod out thru the rocks.AVI[/ame]
[ame="http://www.youtube.com/watch?v=5WJxXLIxsR4"]YouTube - pulling up.AVI[/ame]
[ame="http://www.youtube.com/watch?v=U61KPvQk9N4"]YouTube - tugging the dune buggy.AVI[/ame]
[ame="http://www.youtube.com/watch?v=wFI7eL1chtI"]YouTube - track off.AVI[/ame]
[ame="http://www.youtube.com/watch?v=UH2e55dRD0U"]YouTube - winching out of the ruts.AVI[/ame]
[ame="http://www.youtube.com/watch?v=wM2RDpo2H3I"]YouTube - track off not looking good.AVI[/ame]
It took about 5 hours to get the track back on. I got it home the same day and learned a lot about trail repairs.

This one is from March 30 2007. It is by far my most over-produced video ever. I played around with the speed etc to keep it from being boring. I never forget to latch down the cab anymore...

[ame="http://www.youtube.com/watch?v=aNTD_yfOAYg"]YouTube - how i got whiplash march 30 2007[/ame]

March 31 2007. I think you can notice my extreme caution when it starts going downhill. I'm a little scared of it tipping the cab. I'll get used to it with more experience. I don't have anyone available to teach me driving techniques so I am winging it.

[ame="http://www.youtube.com/watch?v=XGT69_zoFpE"]YouTube - going for a drive mar 31 2007[/ame]

Excellent videos and pictures. I bet those wide belts halp allot with the floatation in the deeper snow. I think you did a good thing going to a two belt design with the tracks. Our last machine(same as the one we have now) had four belts per track and seemed to have less flotation that this one with a two belt design. What are your plans for this machine?

groomerguyNWO said:
Excellent videos and pictures. I bet those wide belts halp allot with the floatation in the deeper snow. I think you did a good thing going to a two belt design with the tracks. Our last machine(same as the one we have now) had four belts per track and seemed to have less flotation that this one with a two belt design. What are your plans for this machine?
Click to expand...

Well, I hope to get new windows and some bodywork done. I can groom a few trails for the local snowmobile club. I might have a line on some other winter work for the local pulp mill. I have to have it fully functional and looking good for that tho.

Hey I looked at your pictures and videos in your links. Kewl machines! I liked the "show them to me" video. I also saw a shopped pic of your machine pulling out a kristie...

kitimatdude said:
Hey I looked at your pictures and videos in your links. Kewl machines! I liked the "show them to me" video. I also saw a shopped pic of your machine pulling out a kristie...
Click to expand...

Me? Not so much. :glare:

Of course it had to be photo-shopped 'cause in real life a Kristi would be pulling out the LameTrac.
