New Replacement Grousers Bombardier Bombi,BR100,BR100plus

MNoutdoors RIP

MNoutdoors RIP

Gone But Not Forgotten
We have new replacement Grousers for The Bombardier Bombi,BR100,BR100plus we will offer to anyone who is a member on the forums at a discount
we have all the lengths 24" 28" 32" these are 1/4" taller than the factory cleats and the side wall is heavier they are extruded aluminum of 6061-T6
the hardest you can temper aluminum the factory price for new 32" is over 40.00 each if you are a member send me a PM quantity dictates price. lets just say the price will be right and if you feel happy about what you saved donate some to DOC to help keep the site going. These cleats if you not familiar with them will accept a 5/16" carriage bolt anywhere the entire length of the grouser so that means you can use them on other machines
because any bolt spacing will work. The height of these is 2.75" :thumb:

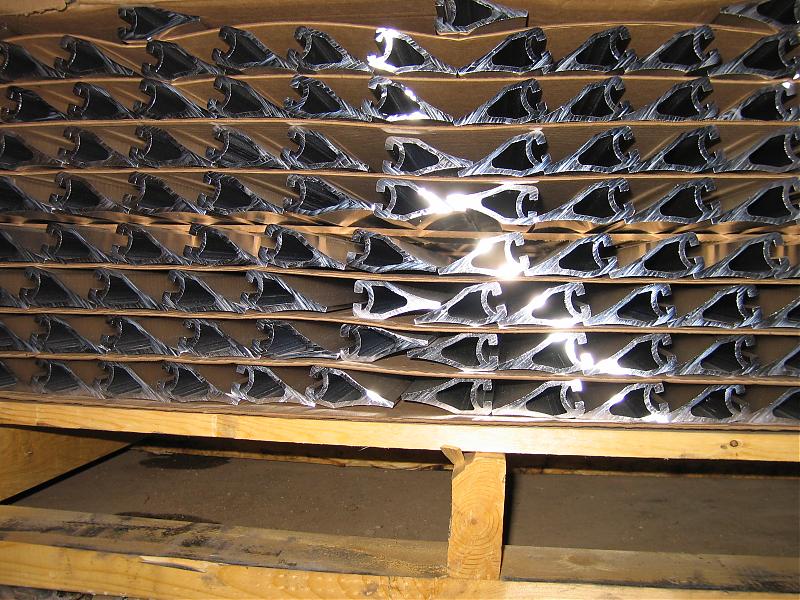

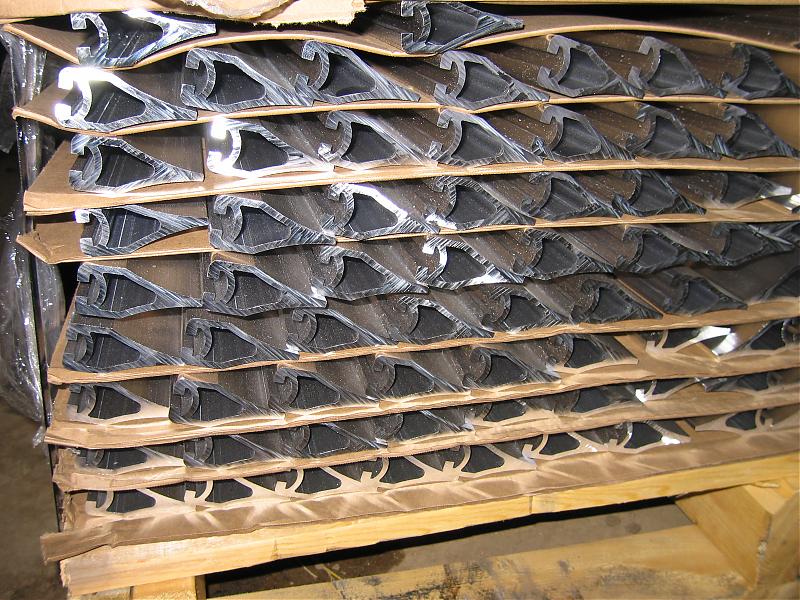

Attachments

  • IMG_2257.jpg
    129.1 KB · Views: 3,216
  • IMG_2258.jpg
    123.3 KB · Views: 3,219
  • IMG_2261.jpg
    77.8 KB · Views: 3,242
Cool!!! :thumb: Those would be an interesting replacement for other brands. With the use of a carriage bolt anywhere along the channel it makes them an easy replacement for other brands. The aluminum is lightweight and it would lighten up the machine and make it float better along with not taking as much HP to turn the tracks. Are you making any side hill type cleats to work with these as an add on if requested?

They might even make a Kristi go in the snow then again maybe not... Hi BobP!!!!!! :poke:

mtntopper said:
Cool!!! :thumb: Those would be an interesting replacement for other brands. With the use of a carriage bolt anywhere along the channel it makes them an easy replacement for other brands. The aluminum is lightweight and it would lighten up the machine and make it float better along with not taking as much HP to turn the tracks. Are you making any side hill type cleats to work with these as an add on if requested?

They might even make a Kristi go in the snow then again maybe not... Hi BobP!!!!!! :poke:
Click to expand...


The standard Ice Caulk for those machines will fit needed about every 10 grousers. or at the customers request we can weld a flat end plate on. :wave:

those might work out good on my 4t rebuild. ive got to fabricate 10-20 of them anyways. those might just do the job, lighten the weight, and give some good digging ability. any worries about the carriage bolts pulling the heads off? do they make grade 8 carriage bolts? would you put these straight on the belt,,,,or put a plate under them, then the belt, then the backing plate? they look very nice!

socal4t12 said:
those might work out good on my 4t rebuild. ive got to fabricate 10-20 of them anyways. those might just do the job, lighten the weight, and give some good digging ability. any worries about the carriage bolts pulling the heads off? do they make grade 8 carriage bolts? would you put these straight on the belt,,,,or put a plate under them, then the belt, then the backing plate? they look very nice!
Click to expand...

We use grade 5 carriage bolts never found grade 8 the cleat goes right next to the belt . it has nice radius's for that and sprocket engagement on the other side you need a backer or a fender washer. we are working on a new design also that will be 3.75 and use a 3/8 carriage bolt.

as far as pulling the heads of the carraige bolts never have we seen that yet.

Nice tracks. Those will make an old machine look really new! And no rust, too! Nice job on the extrusion die drawing, too.

boggie said:
We have new replacement Grousers for The Bombardier Bombi,BR100,BR100plus we will offer to anyone who is a member on the forums at a discount
we have all the lengths 24" 28" 32" these are 1/4" taller than the factory cleats and the side wall is heavier they are extruded aluminum of 6061-T6
the hardest you can temper aluminum the factory price for new 32" is over 40.00 each if you are a member send me a PM quantity dictates price. lets just say the price will be right and if you feel happy about what you s aved donate some to DOC to help keep the site going. These cleats if you not familiar with them will accept a 5/16" carriage bolt anywhere the entire length of the grouser so that means you can use them on other machines
because any bolt spacing will work. The height of these is 2.75" :thumb:
Click to expand...
Hi I just bought an 1980 Bombi and it has the summer tracks. I would like to buy or build some winter tracks for it how can one get in contact with you to buy the grousers and maybe the belting. Thanks:smile:

Welcome aboard, even if you are a bomb-bard-deer driver! I'm sure boggie or snotrans has PM'd you by now. If not, expect it soon.

Bogie ... new member John W Lewis is asking if you have some of these still available.

What is a brand new set of summer tracks worth?

How many Grousers are on the 78-79 BR100 winter tracks if a person was to buy a whole set?

MNoutdoors RIP said:
We have new replacement Grousers for The Bombardier Bombi,BR100,BR100plus we will offer to anyone who is a member on the forums at a discount
we have all the lengths 24" 28" 32" these are 1/4" taller than the factory cleats and the side wall is heavier they are extruded aluminum of 6061-T6
the hardest you can temper aluminum the factory price for new 32" is over 40.00 each if you are a member send me a PM quantity dictates price. lets just say the price will be right and if you feel happy about what you saved donate some to DOC to help keep the site going. These cleats if you not familiar with them will accept a 5/16" carriage bolt anywhere the entire length of the grouser so that means you can use them on other machines
because any bolt spacing will work. The height of these is 2.75" :thumb:
Click to expand...
Do you still have 24"grousers available
