Doing a track refurbish on a 1981 DMC1200 and have some damaged grousers that need to be replaced. Wondering if anyone has some extras they can part with? I am not sure if the grousers are original or if they are custom but there are three different configurations. They all span over three of the four belts in an alternating pattern. There are two boltholes for each belt location, three locations total. They all have the same cross section but one kind has a short plate welded to one end for better grip on the snow sideways, another kind has the same plate welded on the opposite end and the third kind has open ends. The wheel guides are bolted to the grousers and I am looking for some of those as well. I have attached some pics for more detail.
Let me know if you have anything that will help. PM me! Thanks!
Snows around the corner!
Let me know if you have anything that will help. PM me! Thanks!
Snows around the corner!
Attachments
-

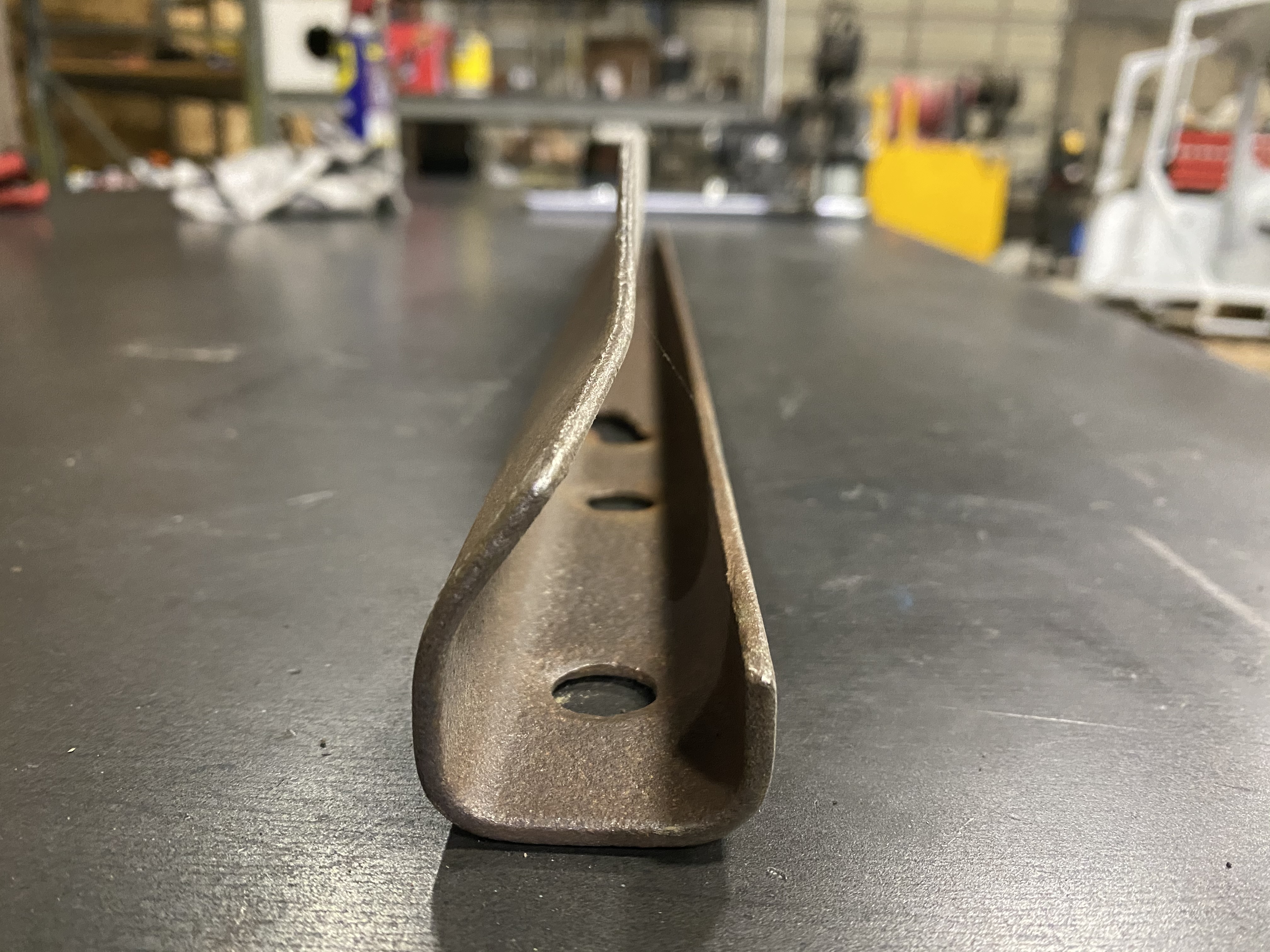

Grouser cross section.jpg -
Grouser with open ends 1.jpg -
Grouser with open ends 2.jpg -

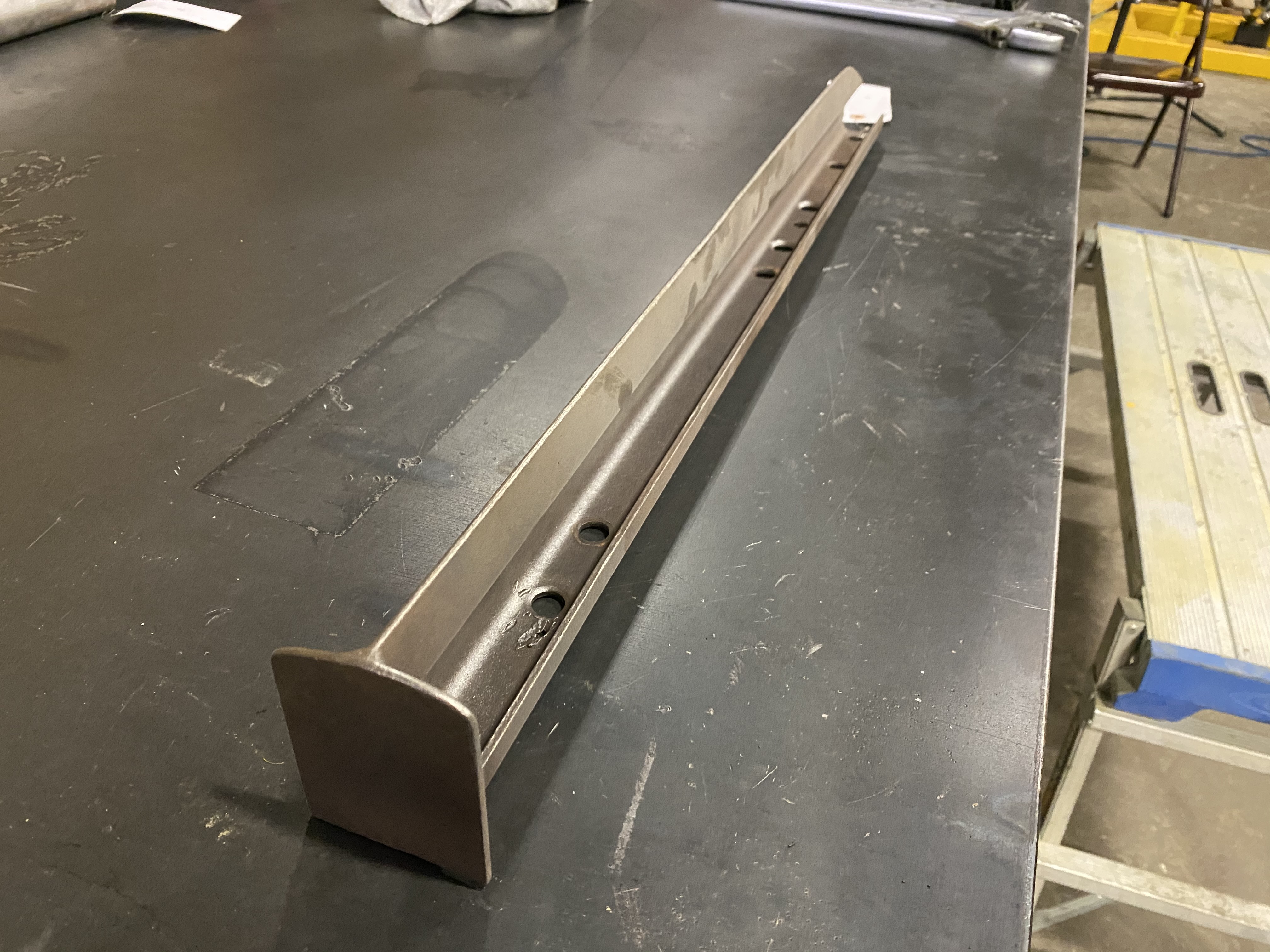

Grouser with plate on left side 1.jpg -

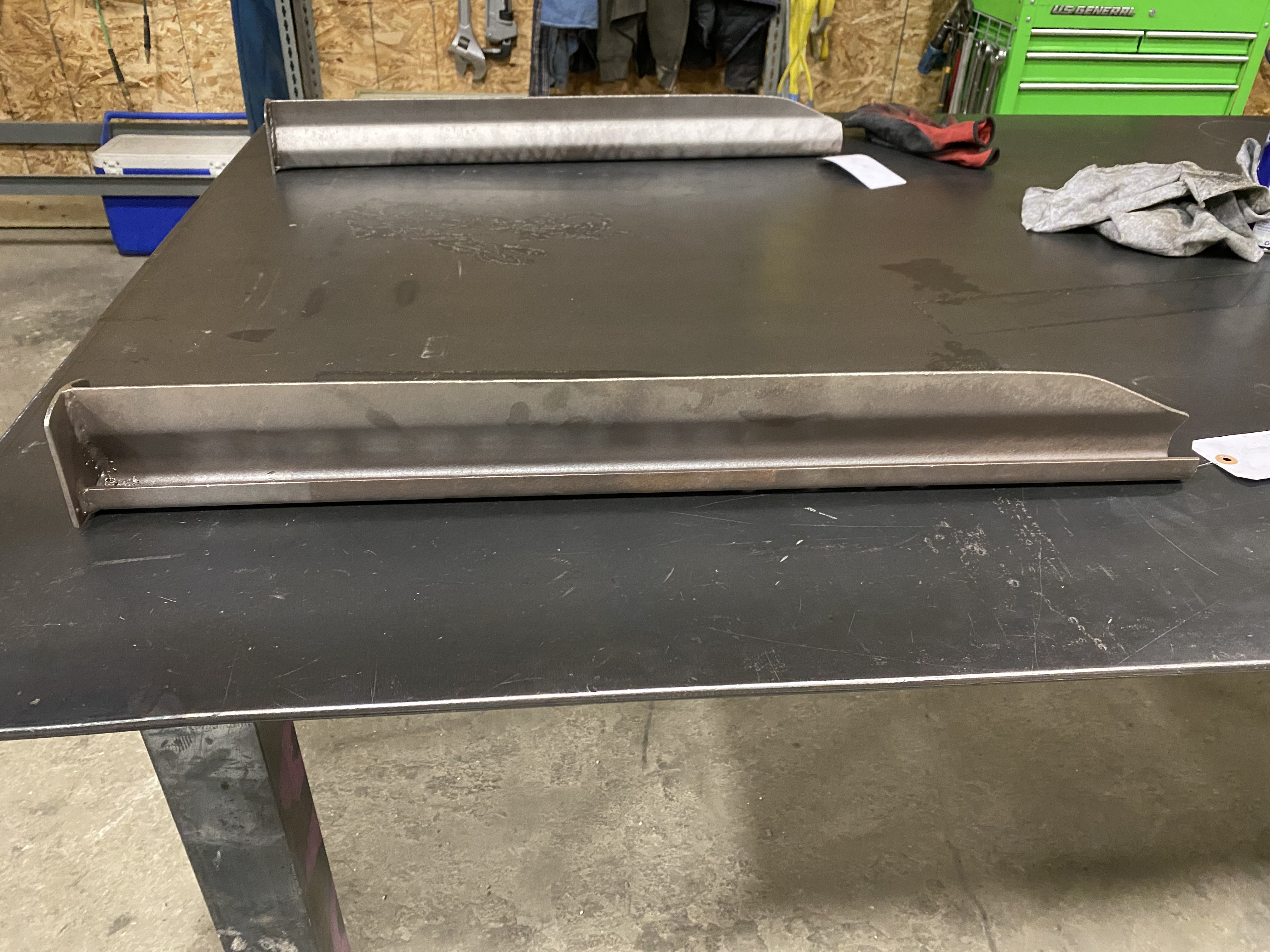

Grouser with plate on left side 2.jpg -

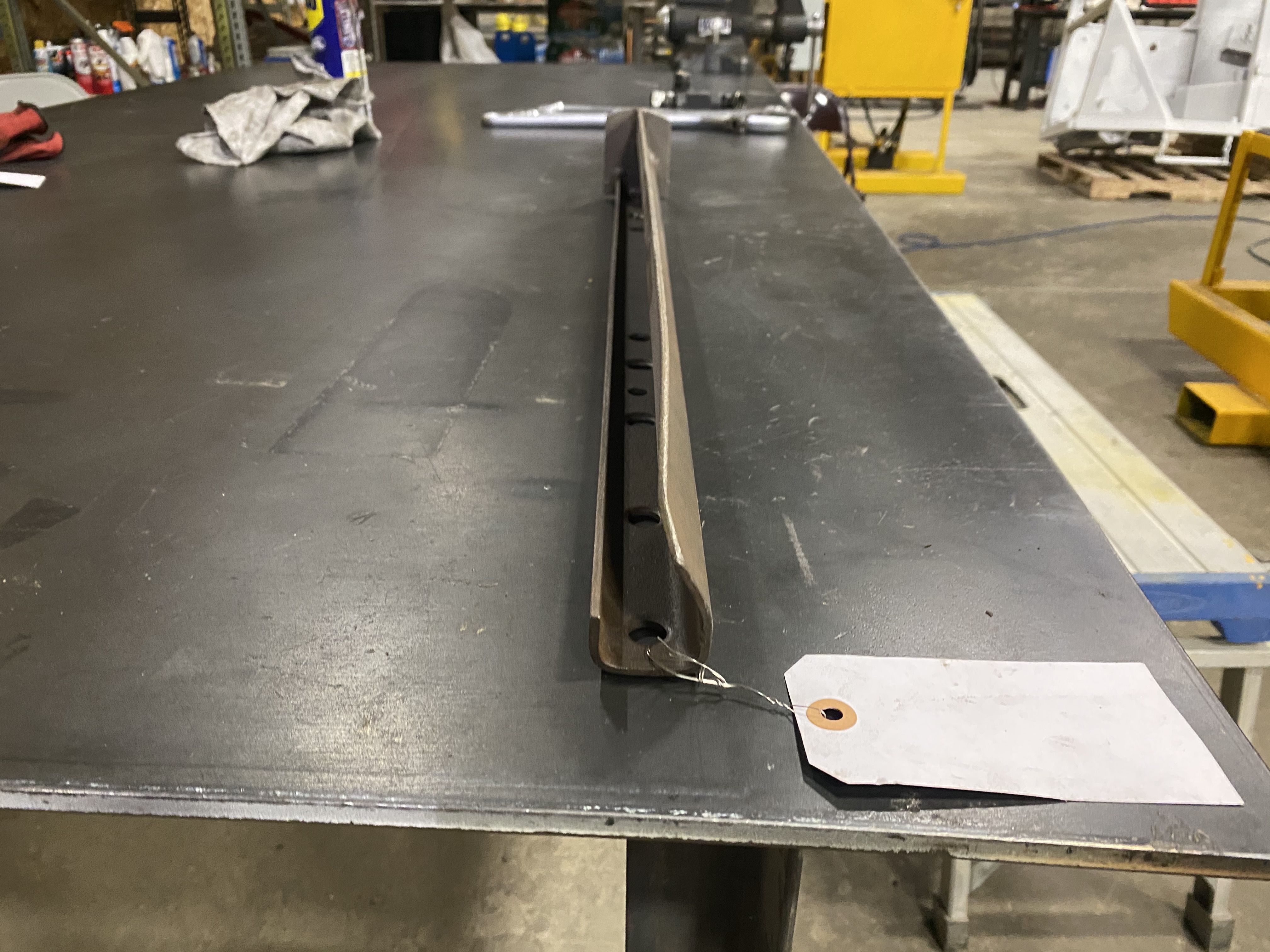

Grouser with plate on left side 3.jpg -

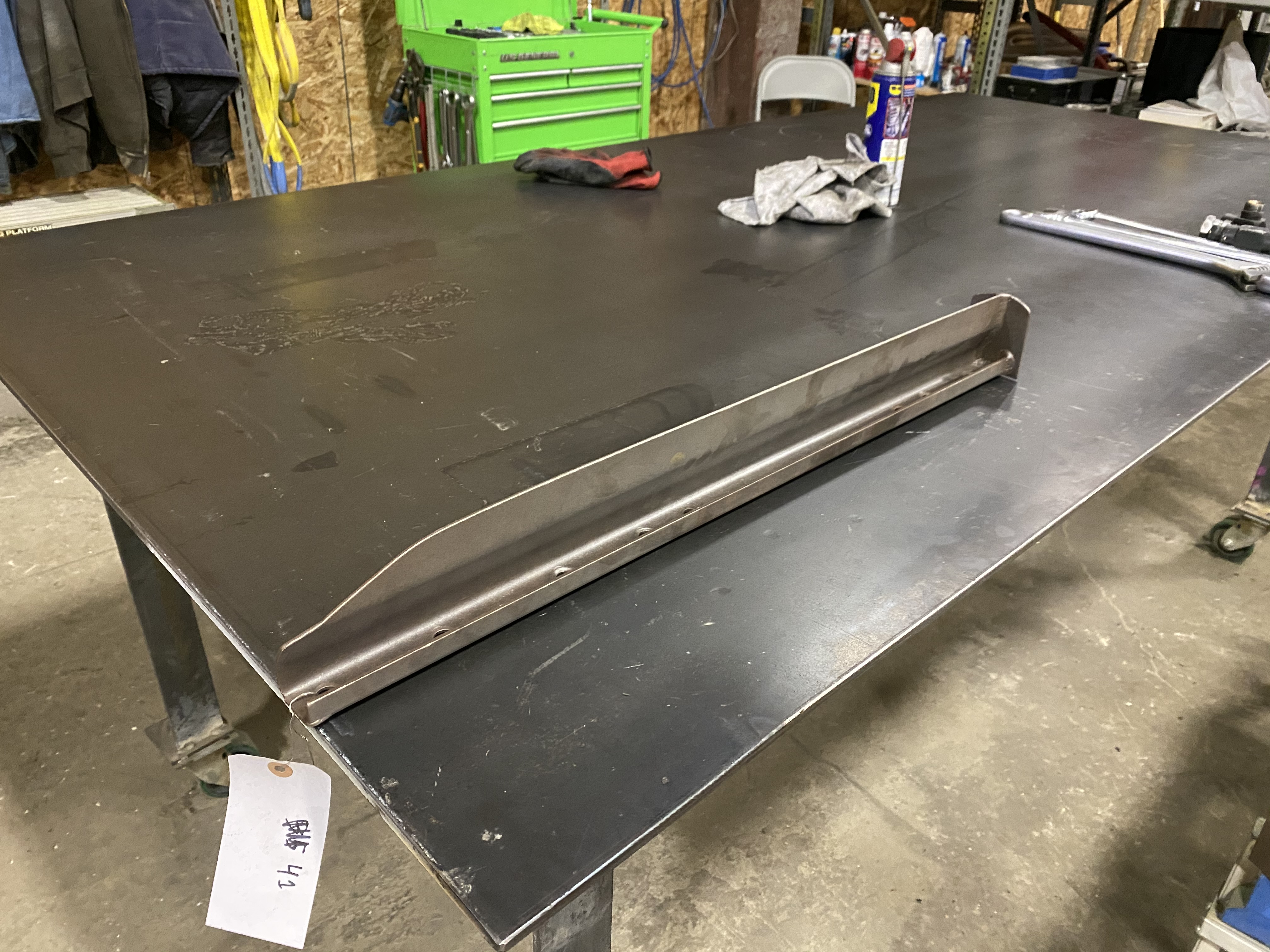

Grouser with plate on right side 1.jpg -

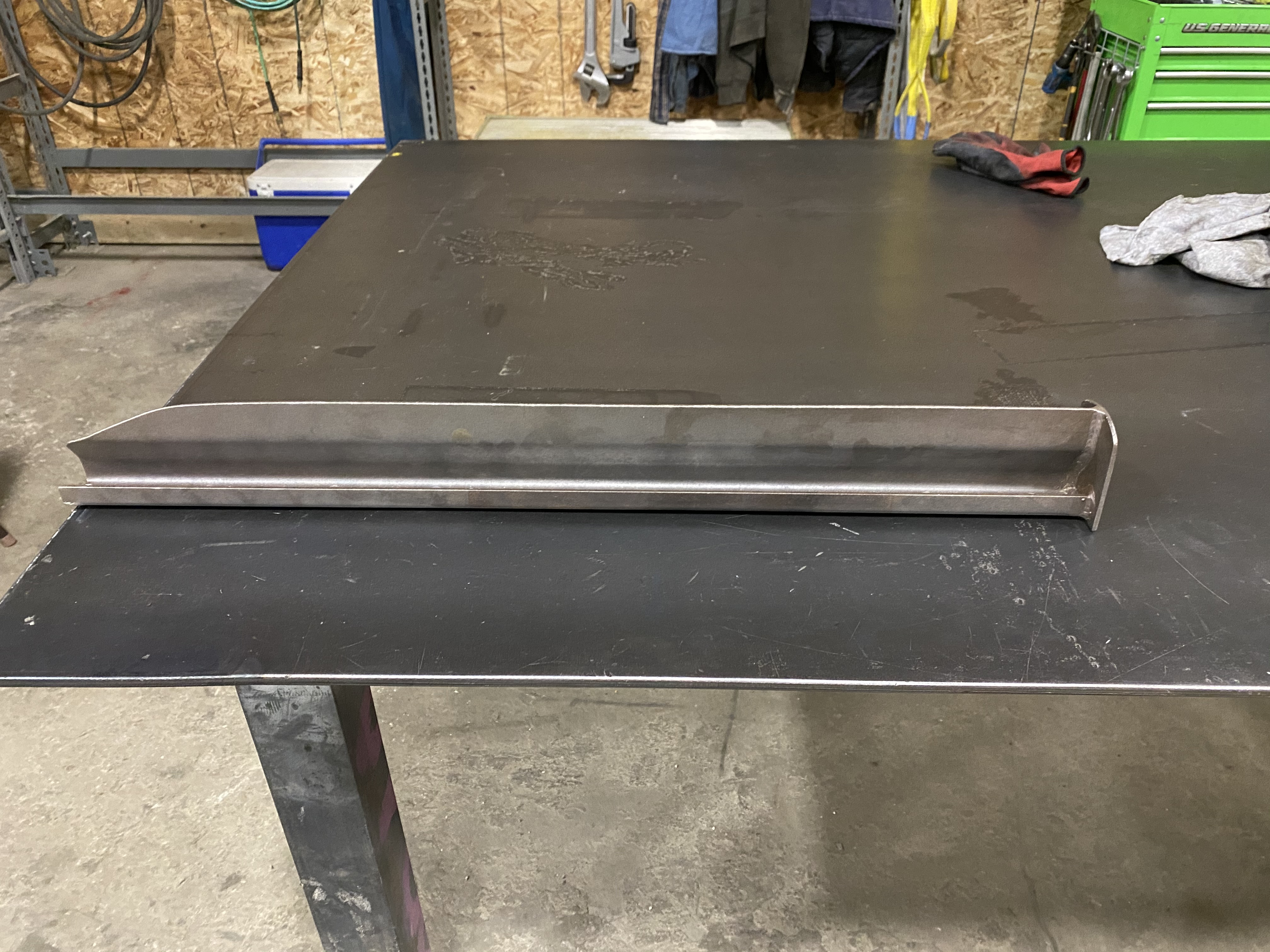

Grouser with plate on right side 2.jpg -

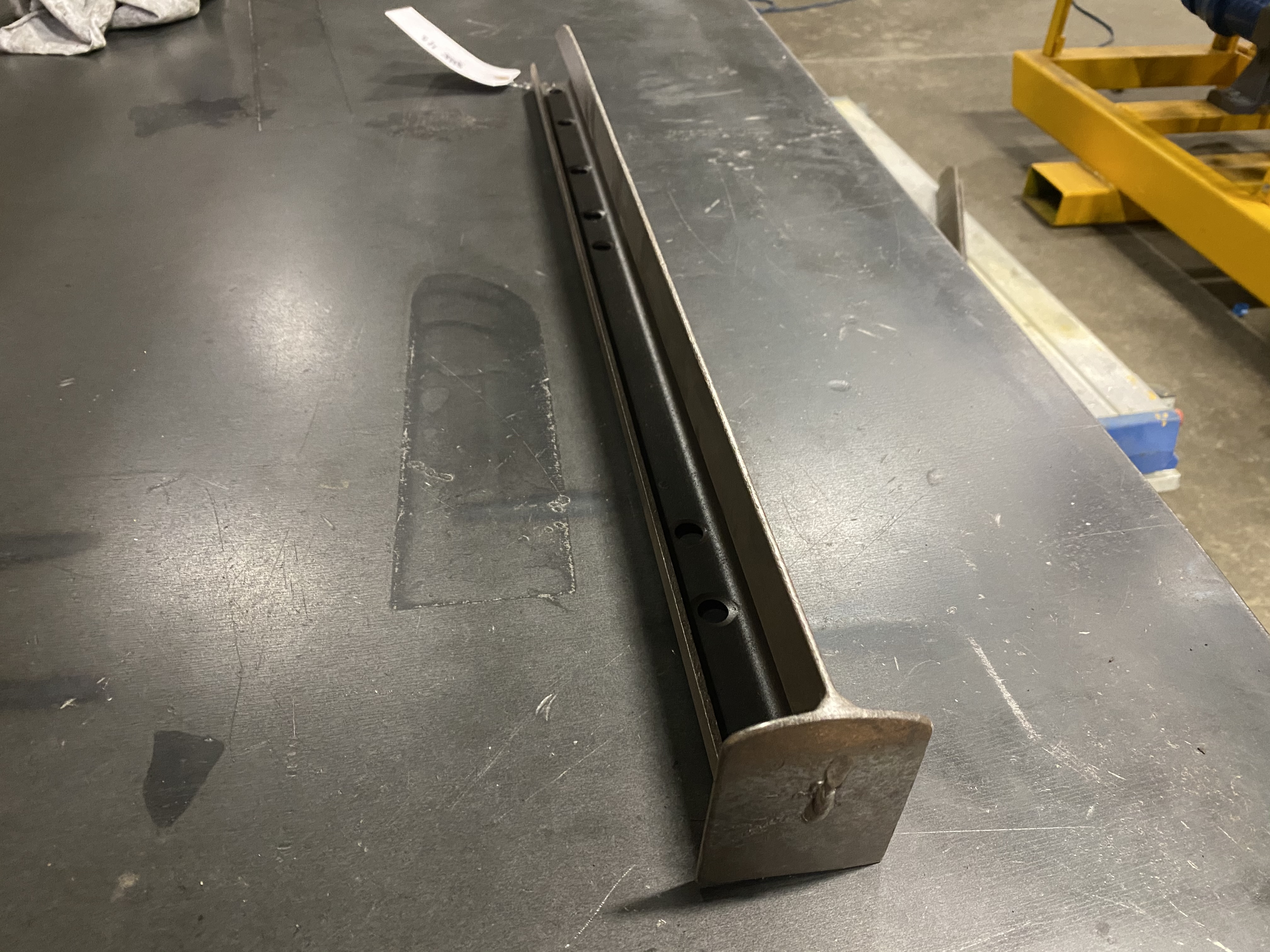

Plate with grouser on right side 3.jpg -

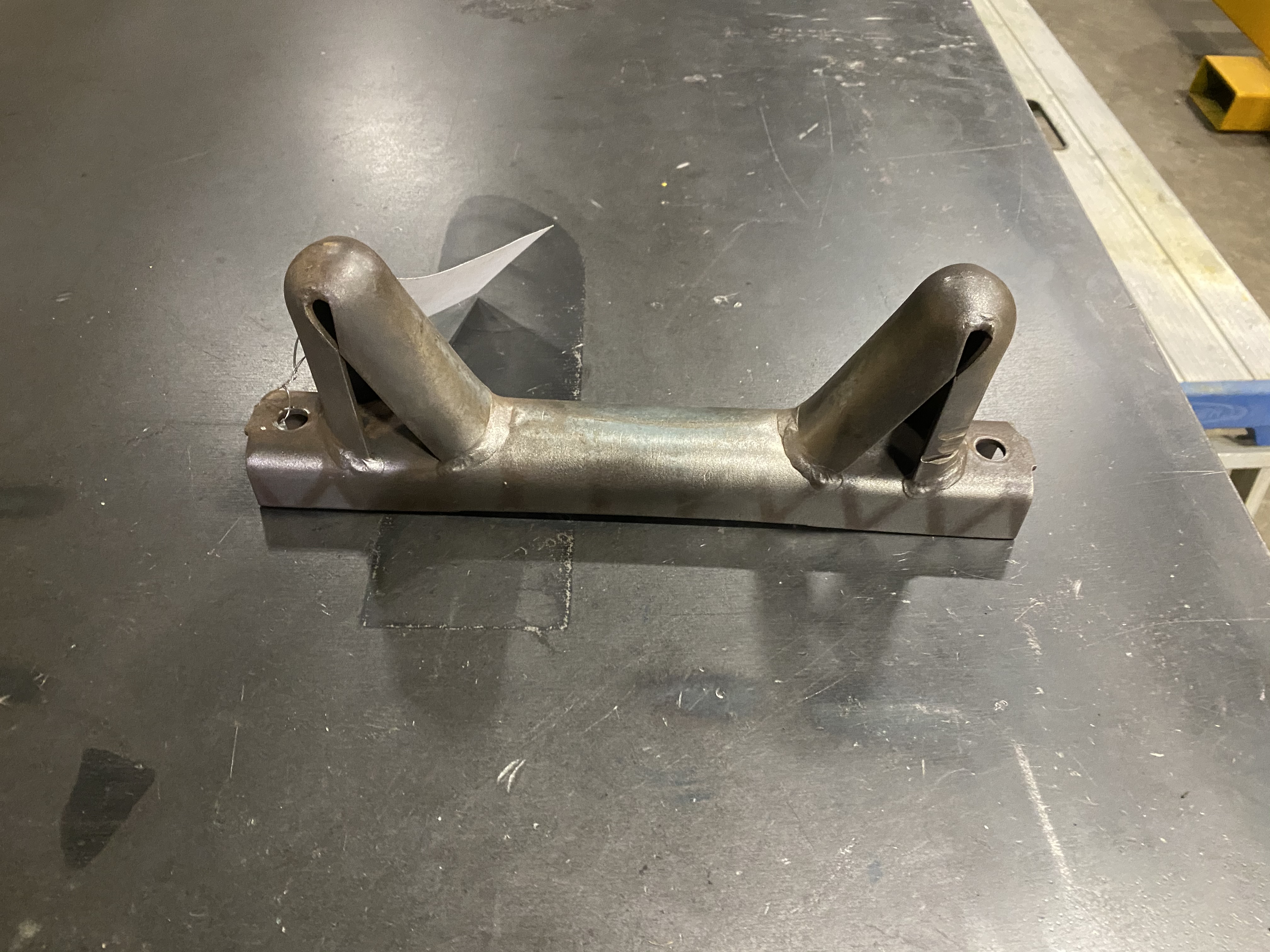

Wheel guide.jpg
