1982 Bombardier BR100 BOMBI restoration complete

[928mr2]

Hi, one month ago I finished the restoration of my snowcat. A 1982 Bombardier BR100. Before beginning I surfed the web for photos and informations and I did'nt find much on these Bombis so I tought that now I'm finished with it I could post photos of the course of the work and before and after the job that took me a year and a half. I would like to help others who would like to do something has 'crazy' as I did.
Since I'm stopped from working for sickness I have a lot of time to do that.

I wanted opinions if it was a good idea and if many peoples were interested and if I'm posting at the right place on this forum.



[Nathan R]

We are always interested. Post away my friend!



[928mr2]

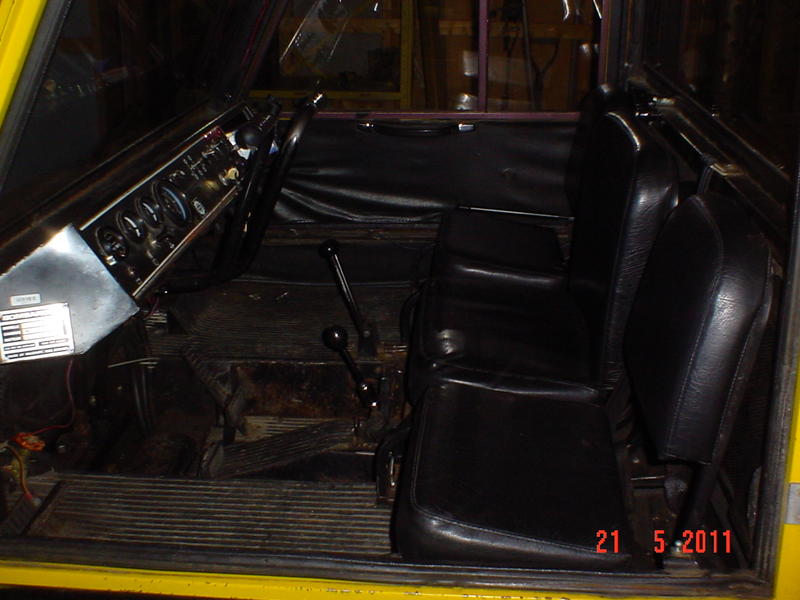

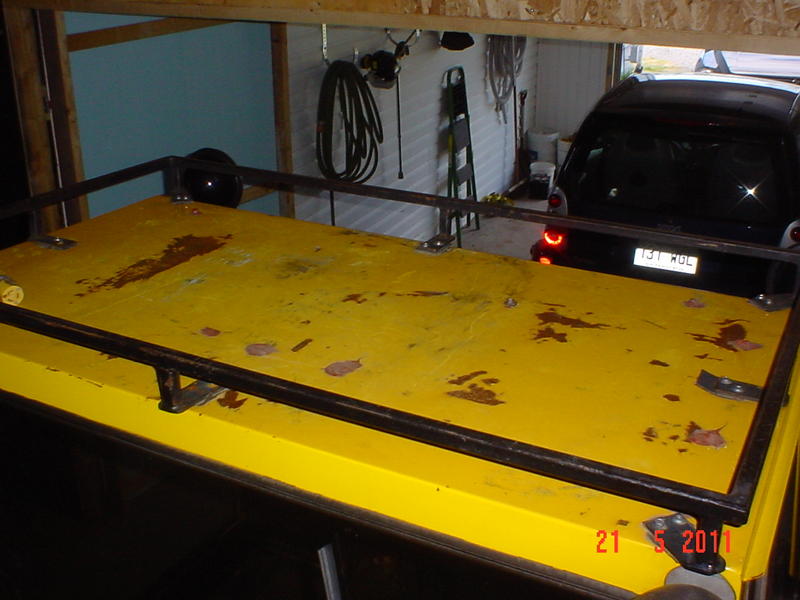

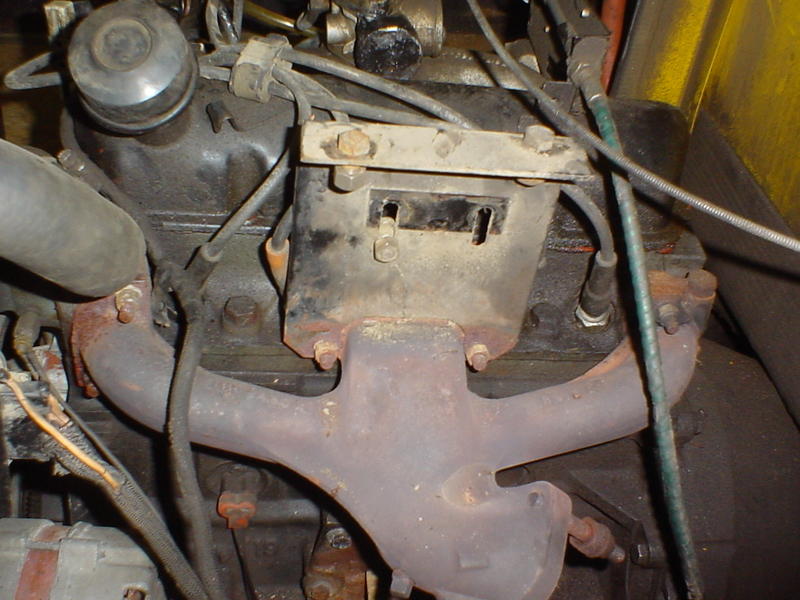

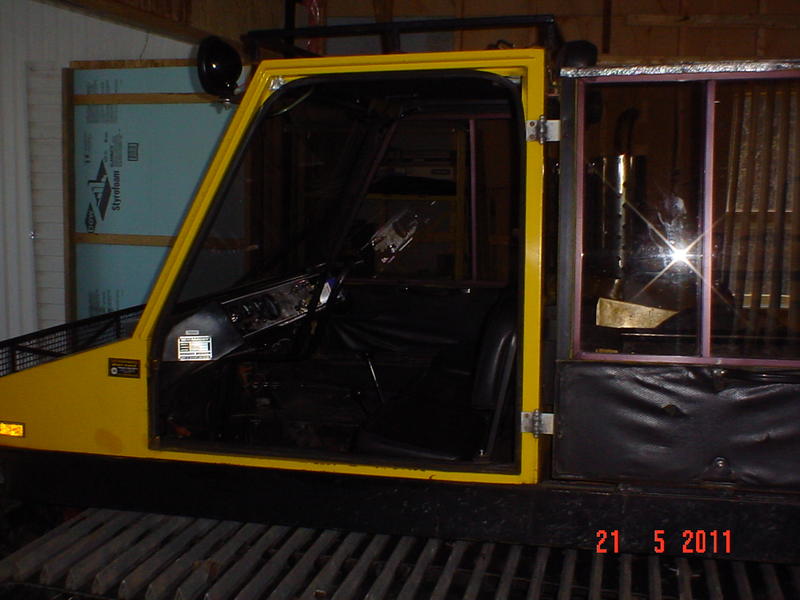

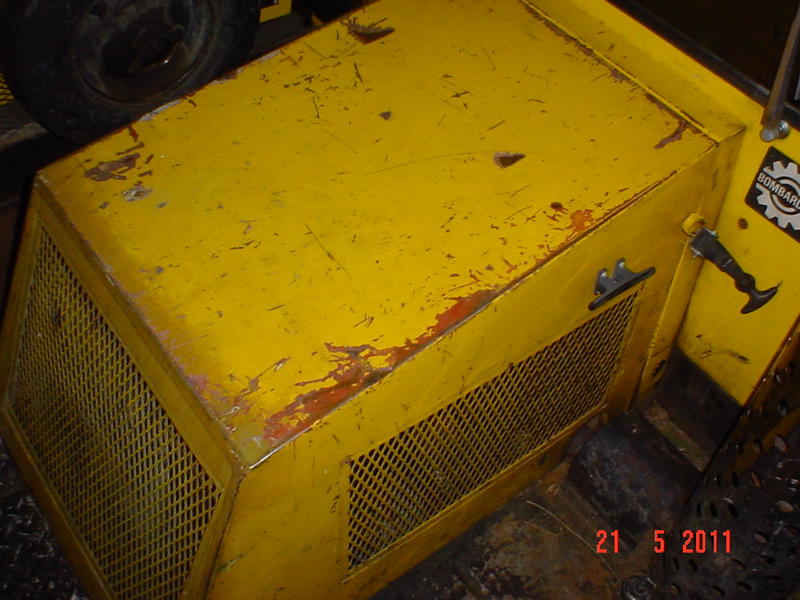

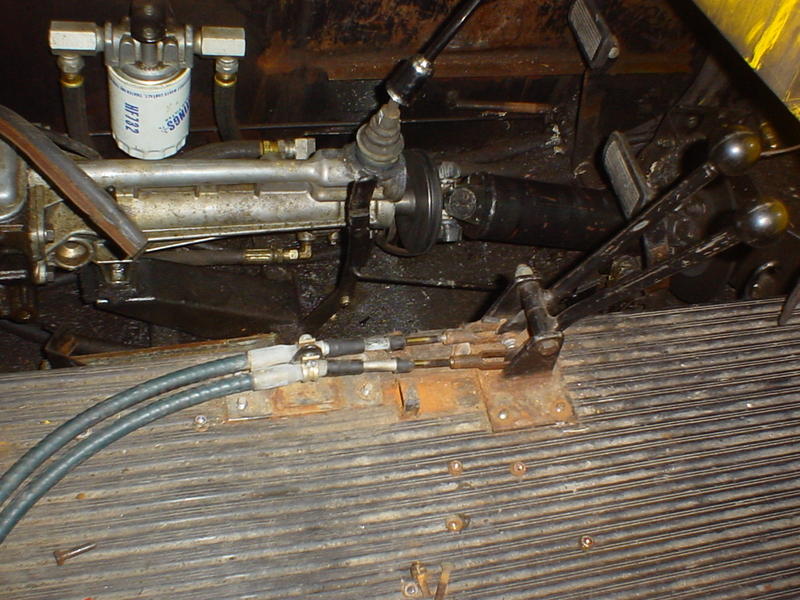

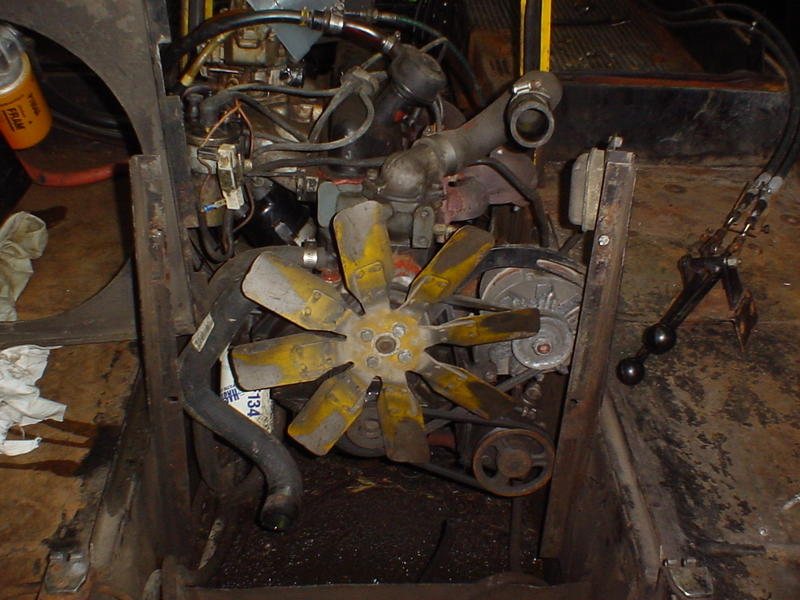

here are my first photos. My BR before with 1.6l 4cyl original Ford industrial engine with 4 speed manual tranny with cable clutch mechanism.



[928mr2]

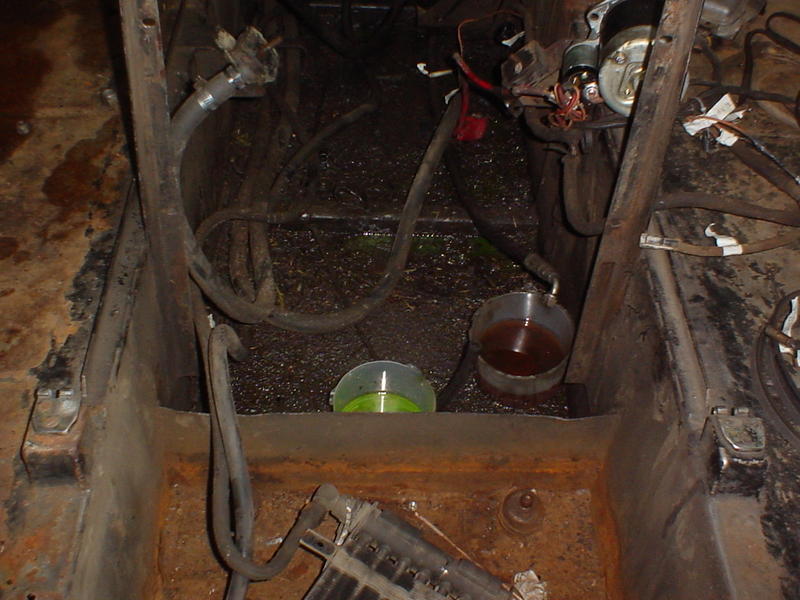

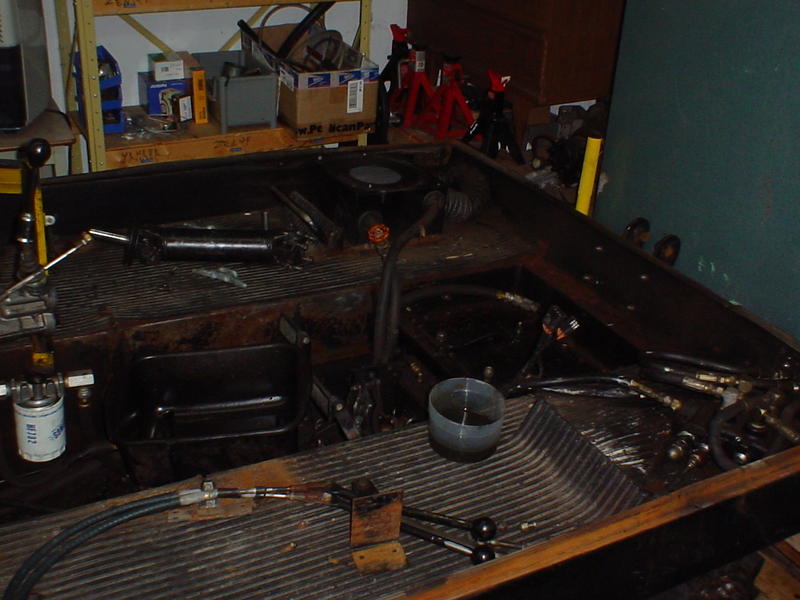

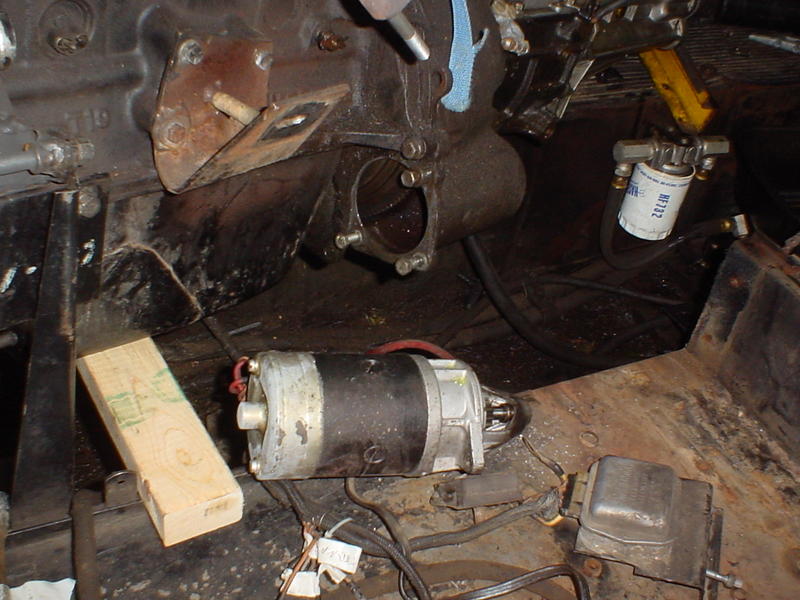

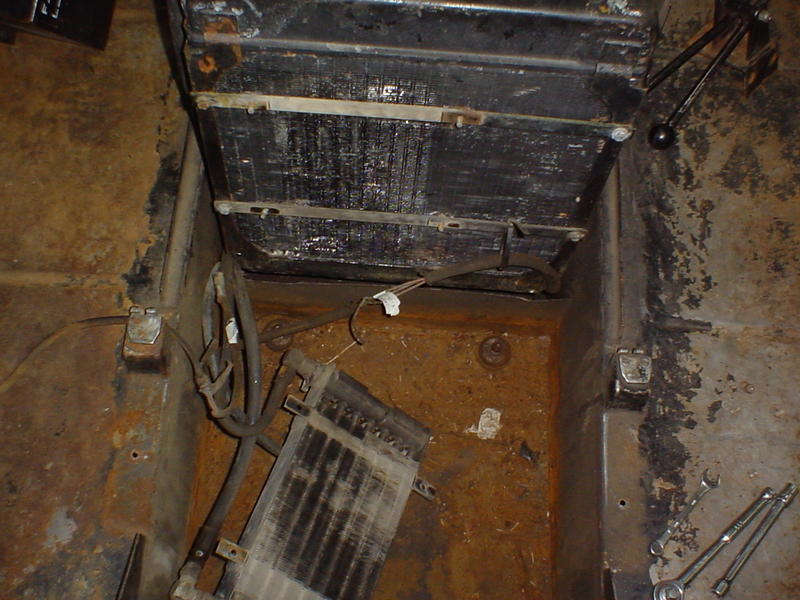

Next photos of disassembly and parting out



[928mr2]

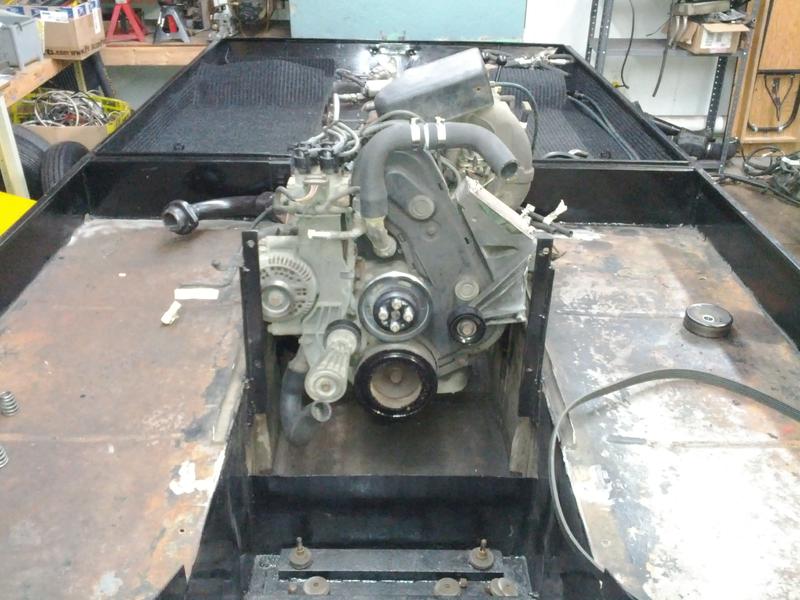

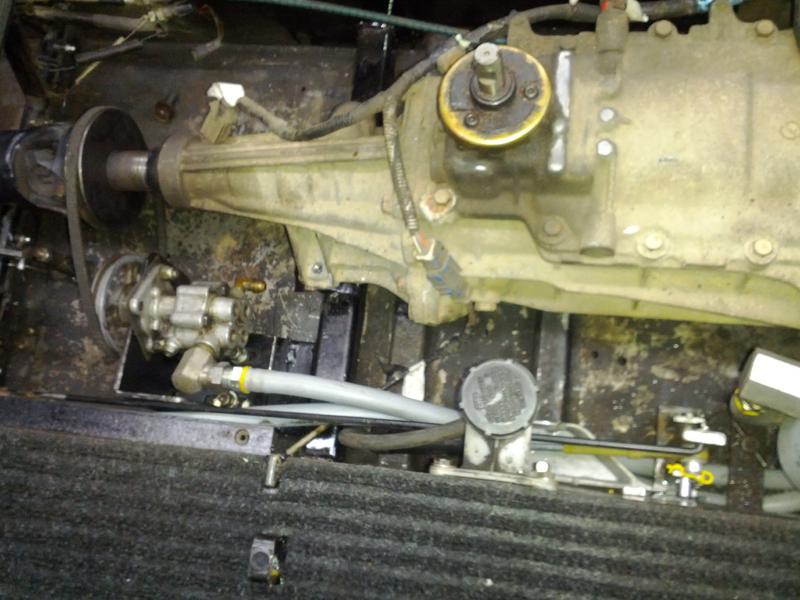

here are the photos of the mods. Engine swap from 1996 Ford Ranger 2.3l EFI with 5 speeds manual tranny yep manual, I prefered it for better reliability than automatic. It shifts very well and smooth from 1 to 5.

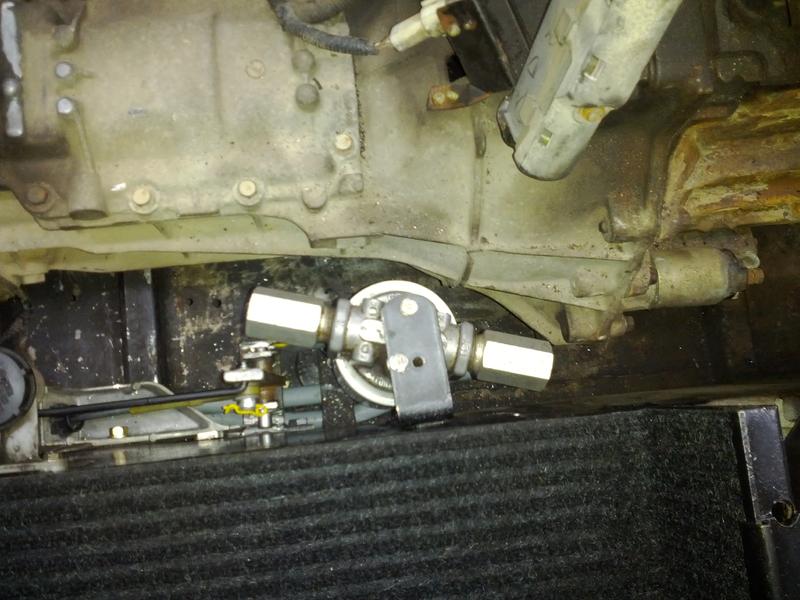

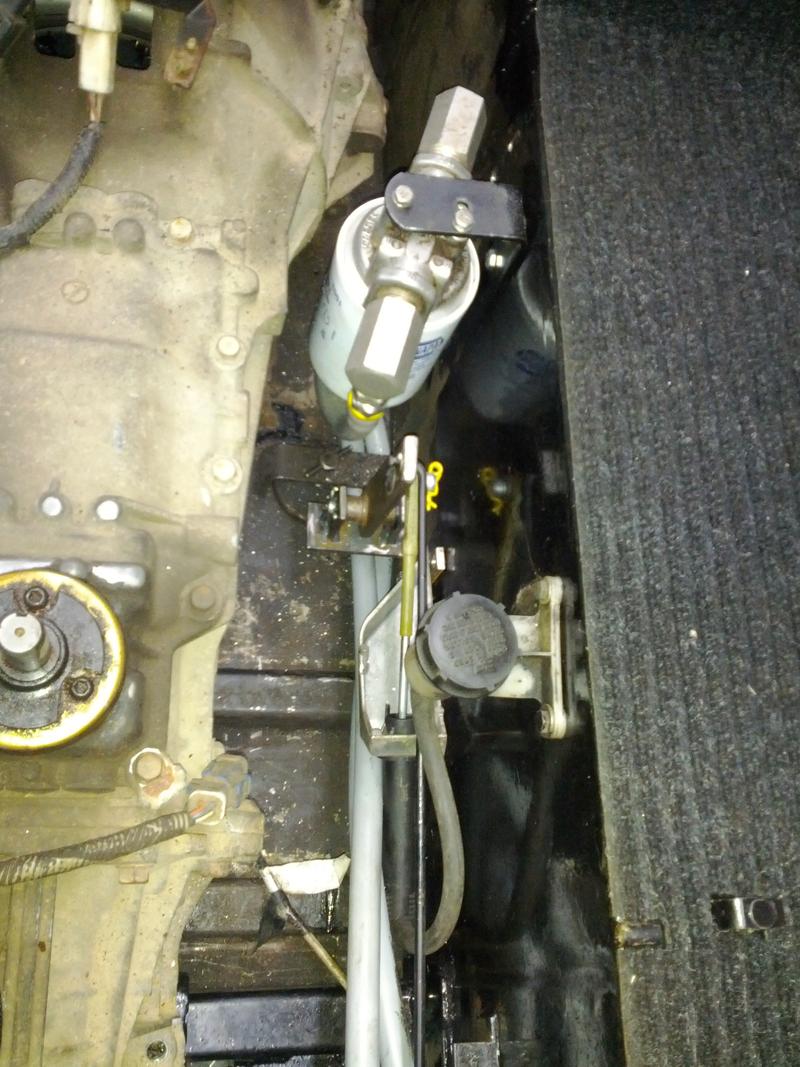

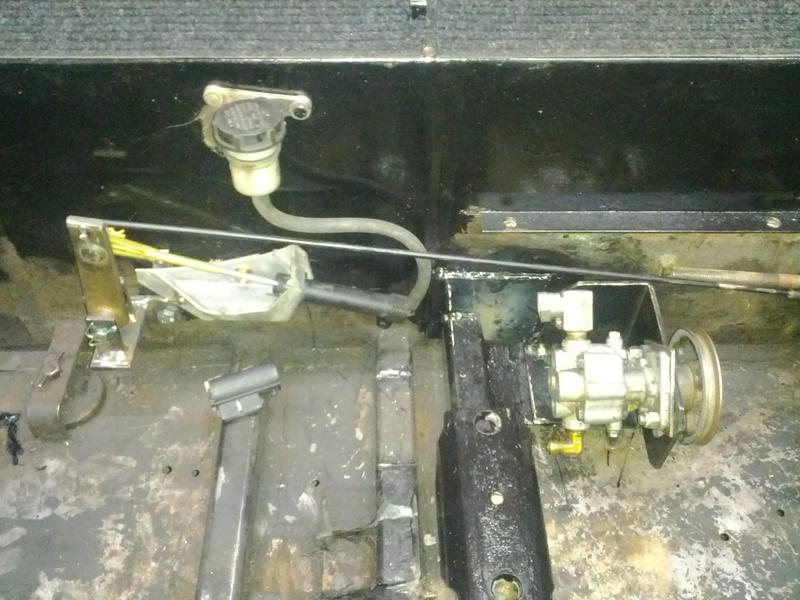

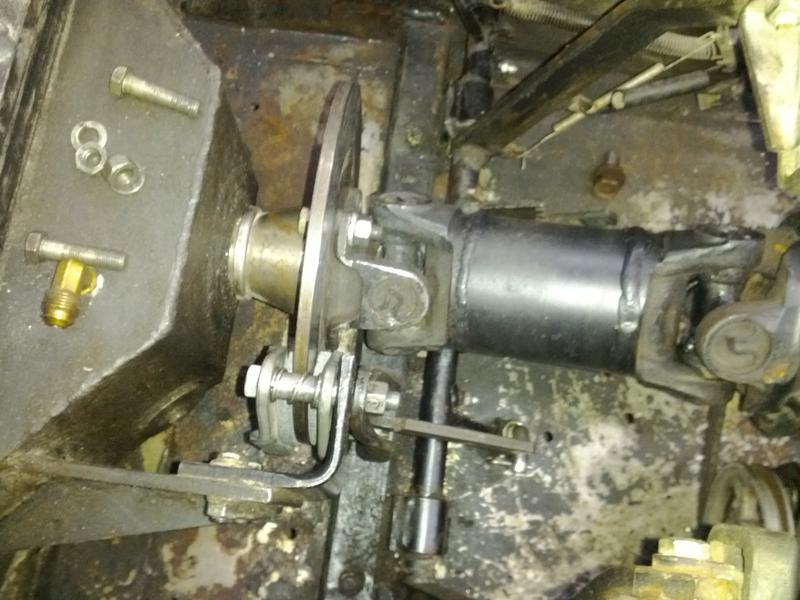

new hydraulic clutch drive mechanism also coming from the Ranger. shorten and balanced driving shaft, repositioned diff oil pump, repositioned tranny and engine mounts, repositioned radiators and oil filters.
changed the rad fan for a reversed one. Modified manifold.

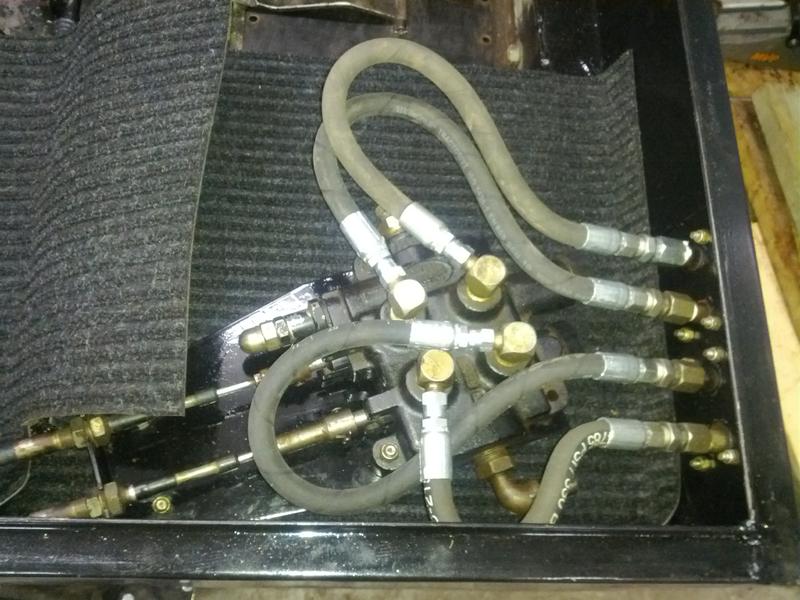

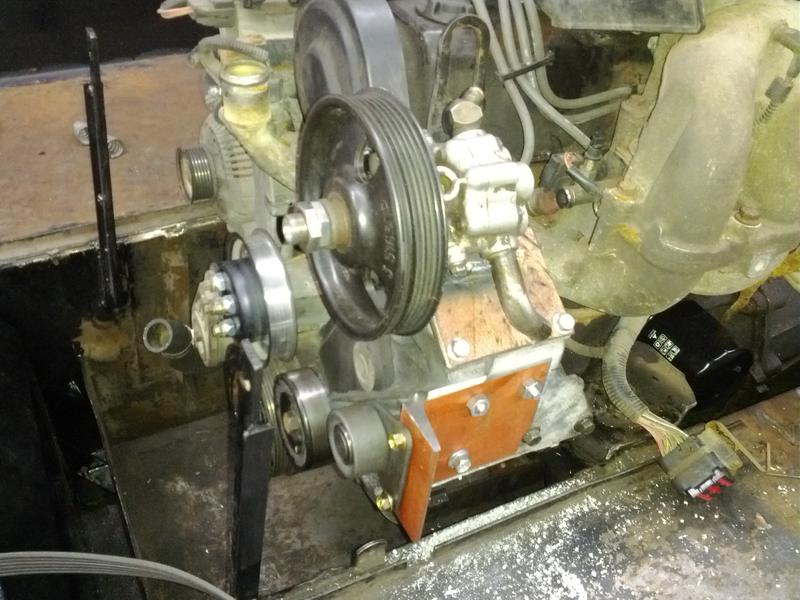

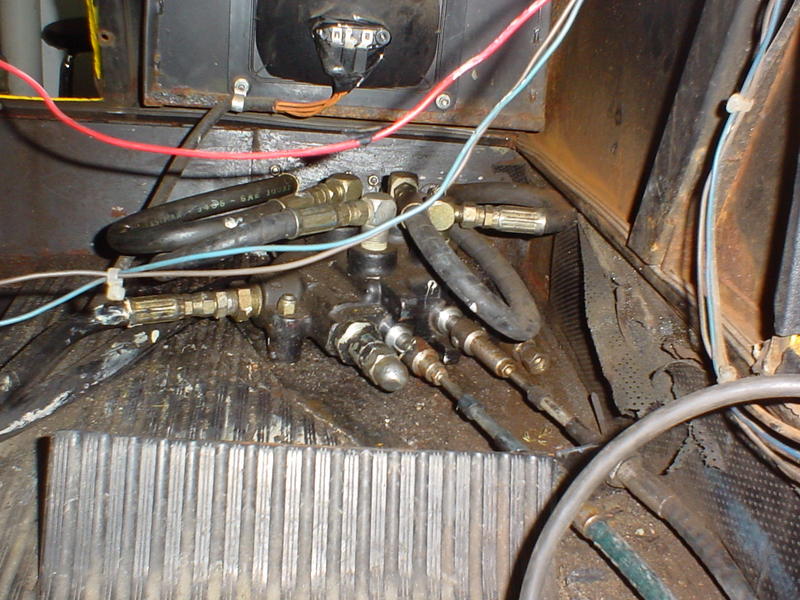

Reinstalled the old hydraulic pump on new engine with flat belt pulley and new longer belt. Repainted chassis after welding and sandblasting. New carpetting and hydraulic hoses.



[928mr2]

more photos



[928mr2]

a few more photos



[928mr2]

last photos for mechanical mods



[928mr2]

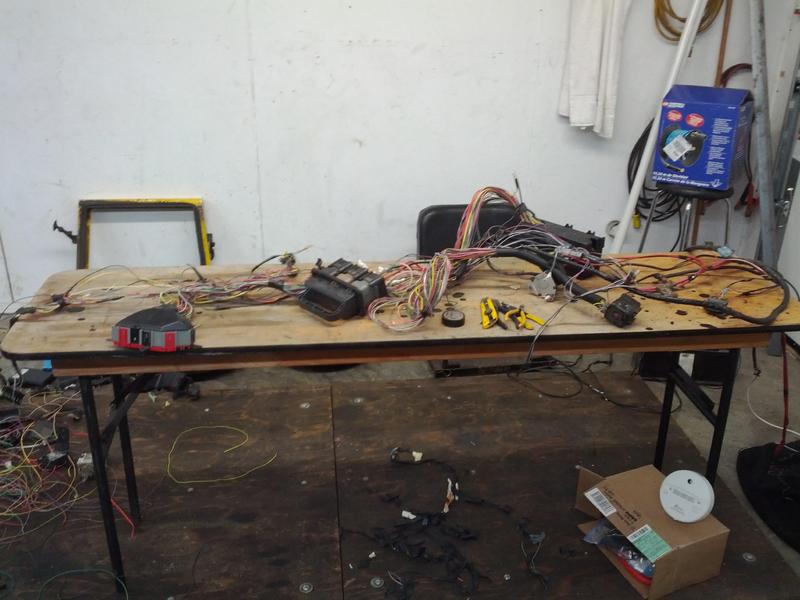

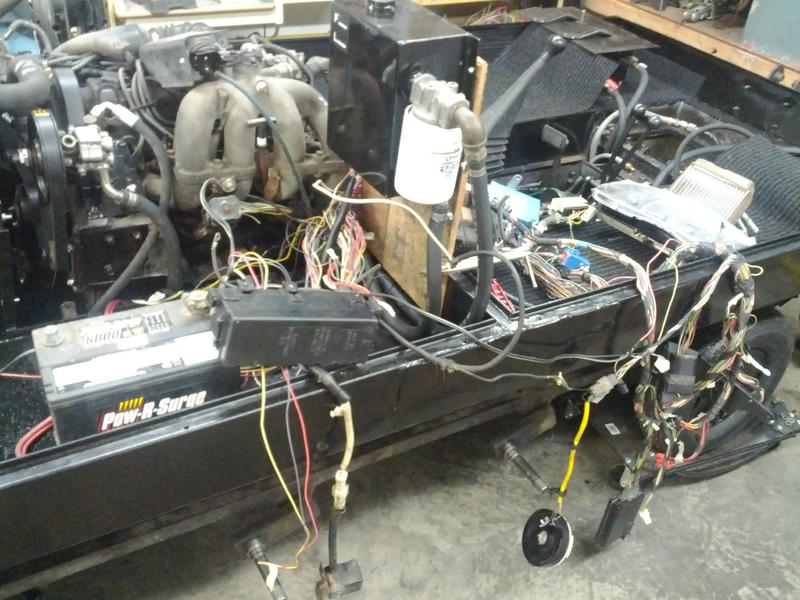

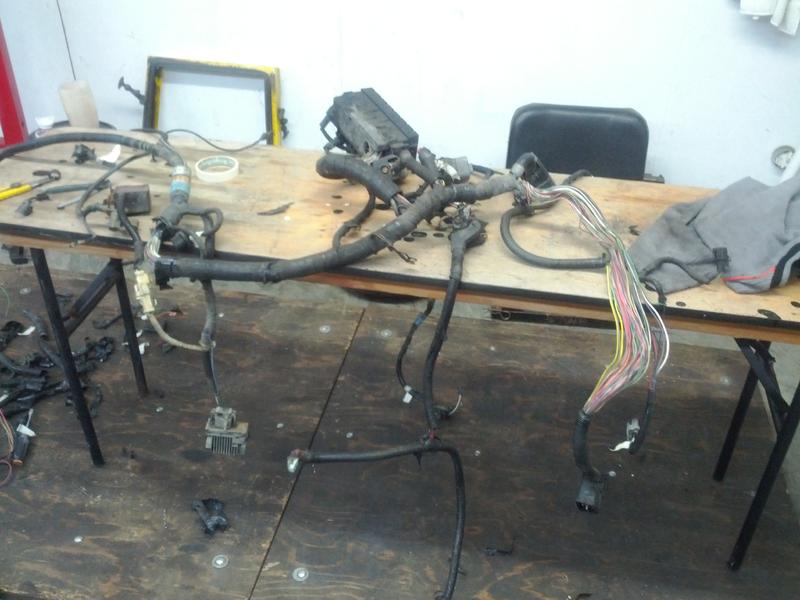

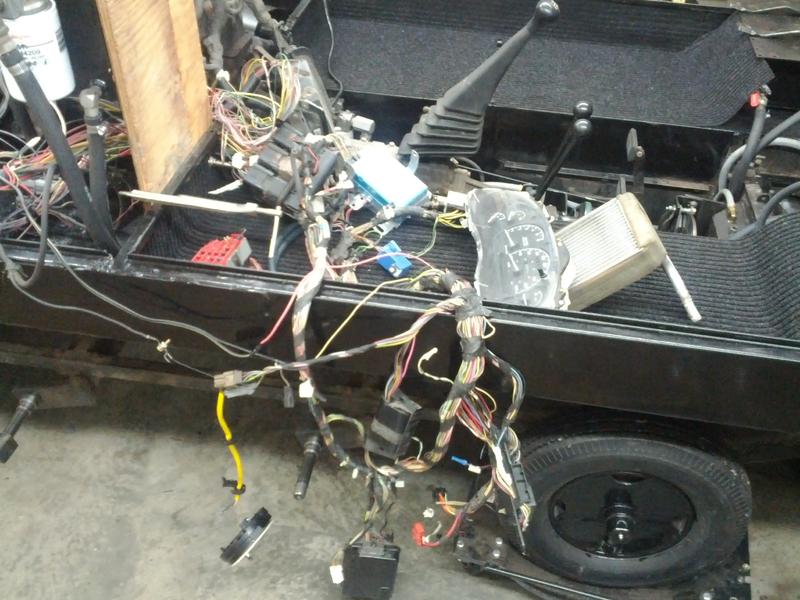

and then the harness of the Raner that I've epured and adapted to the BR. That step took around 40 hours of work and tests.



[928mr2]

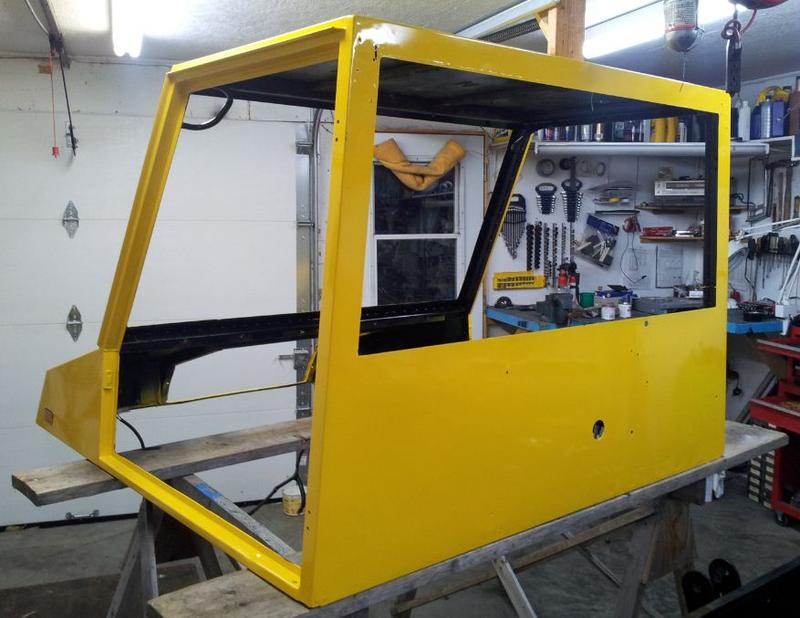

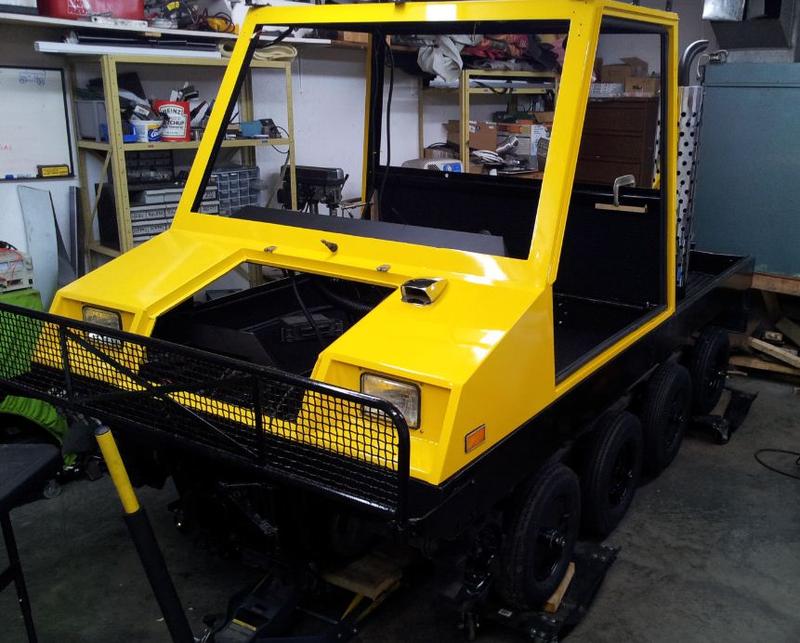

photos before putting back the freshly repainted cab.



[928mr2]

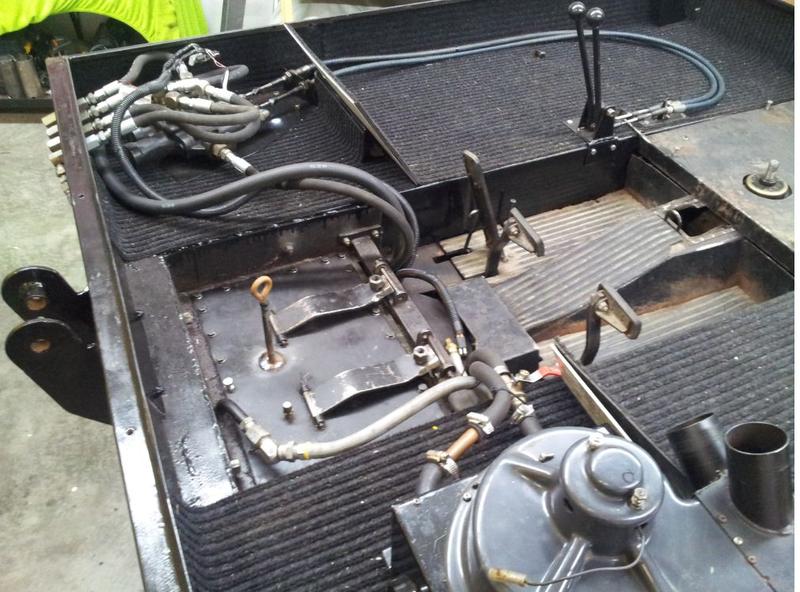

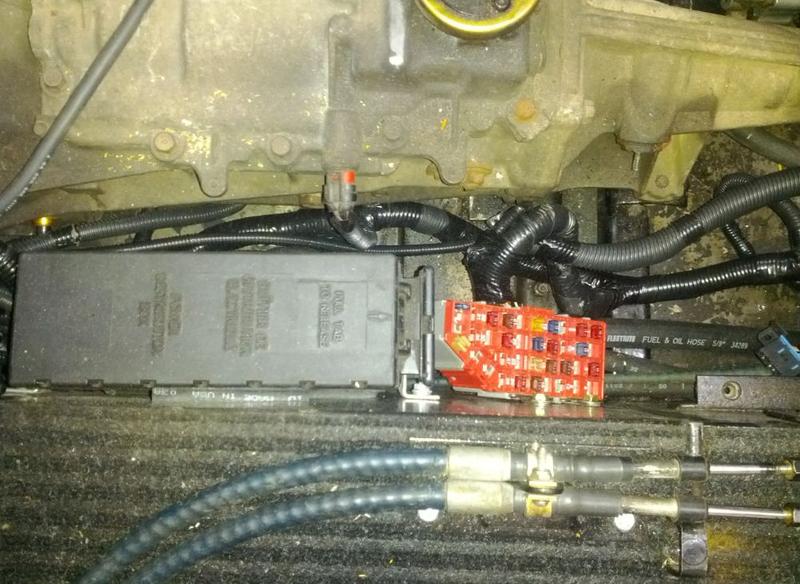

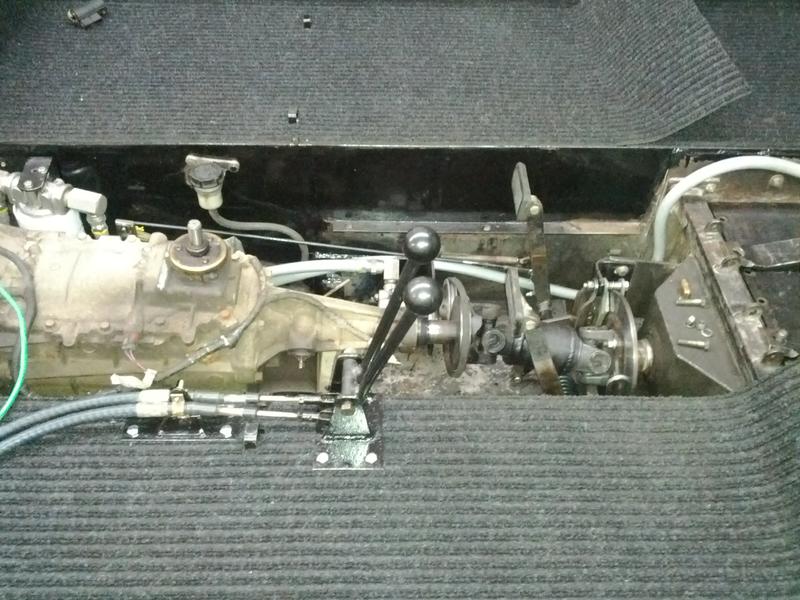

photos of modified shifter, new fuse boxes and adapted Ranger gas pump and gauge in BR gaz tank.



[928mr2]

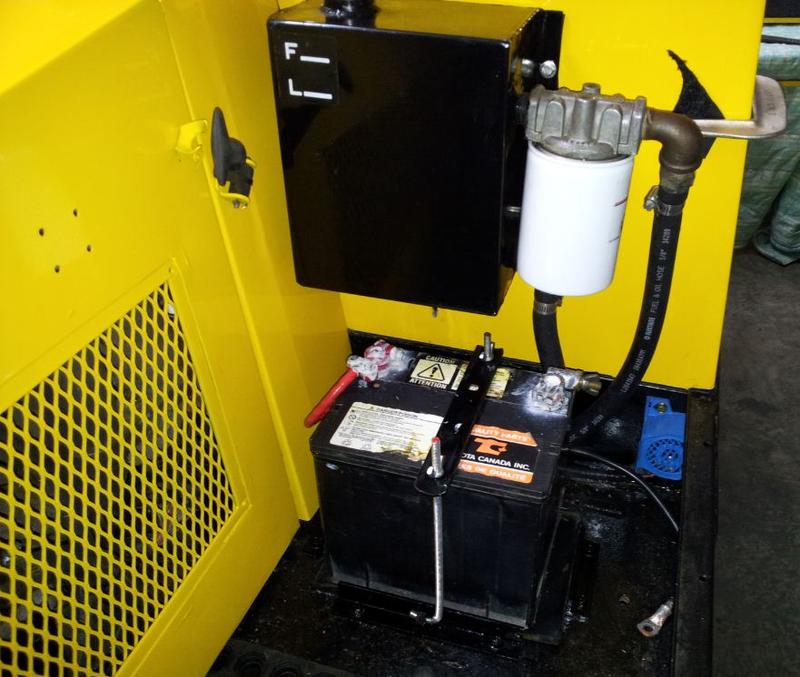

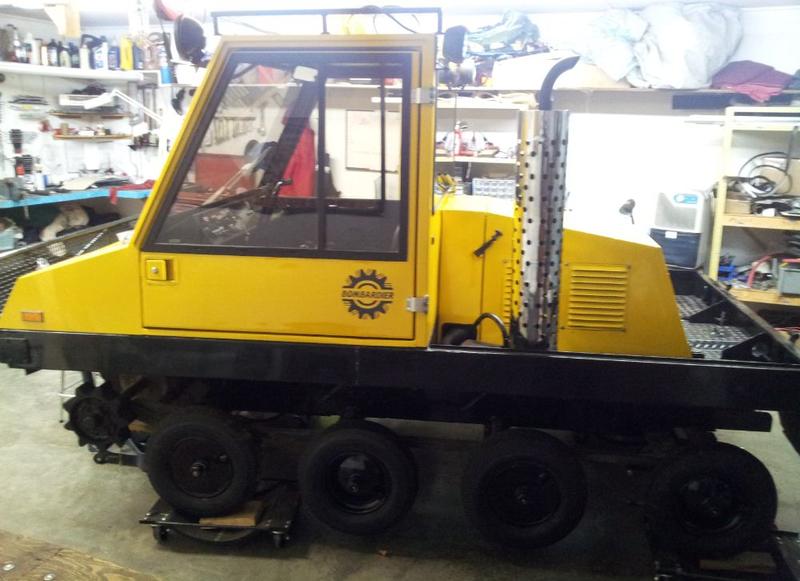

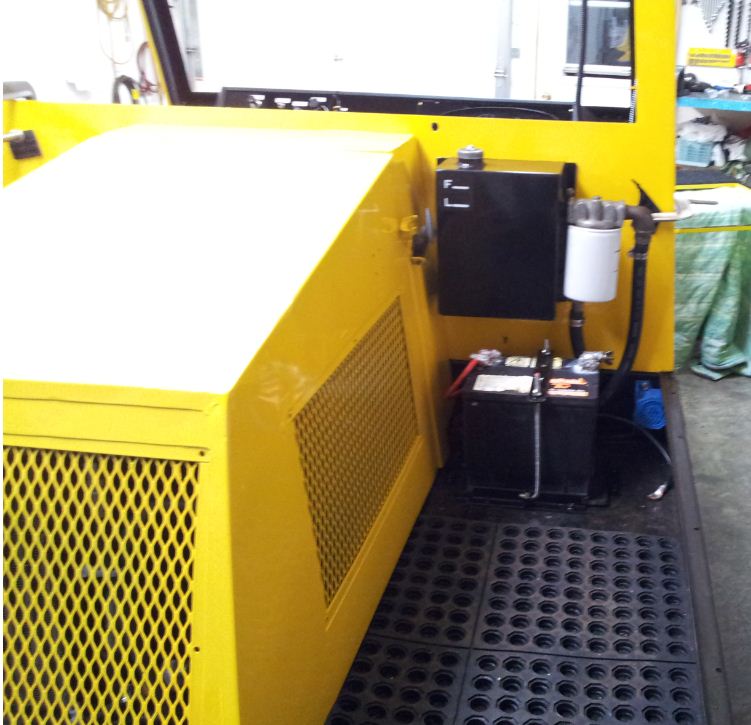

photos of new position of the battery, hydraulic oil tank and back-up signal.
Also muffler now on left side like a BR100+
rack on top and front protector.
Note that the engine compartment has been modified (longer)



[928mr2]

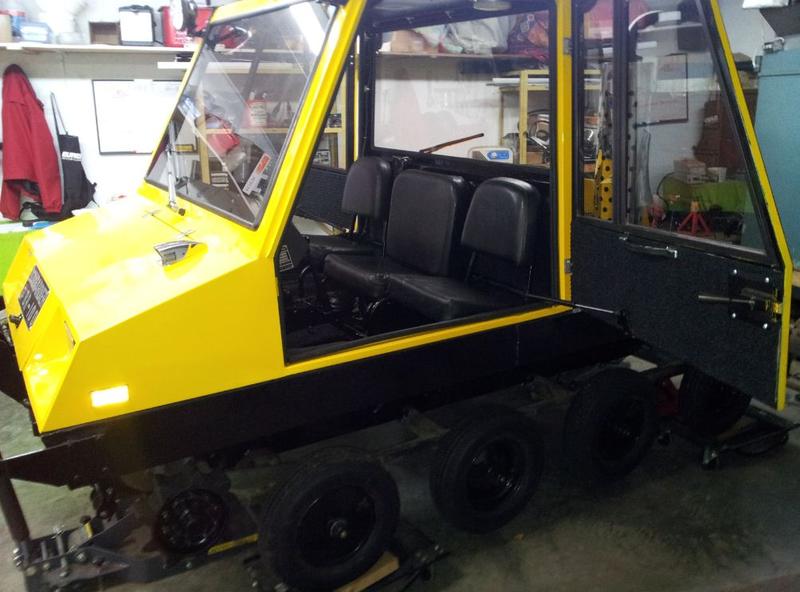

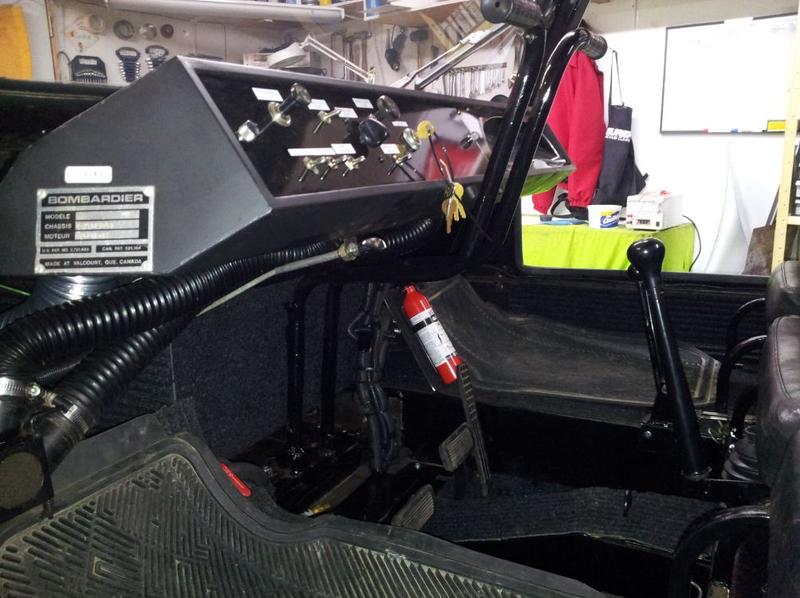

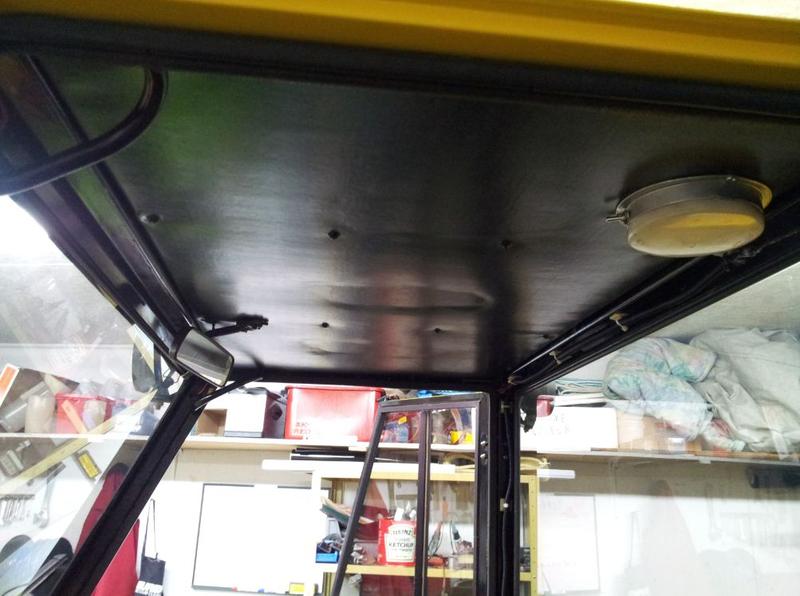

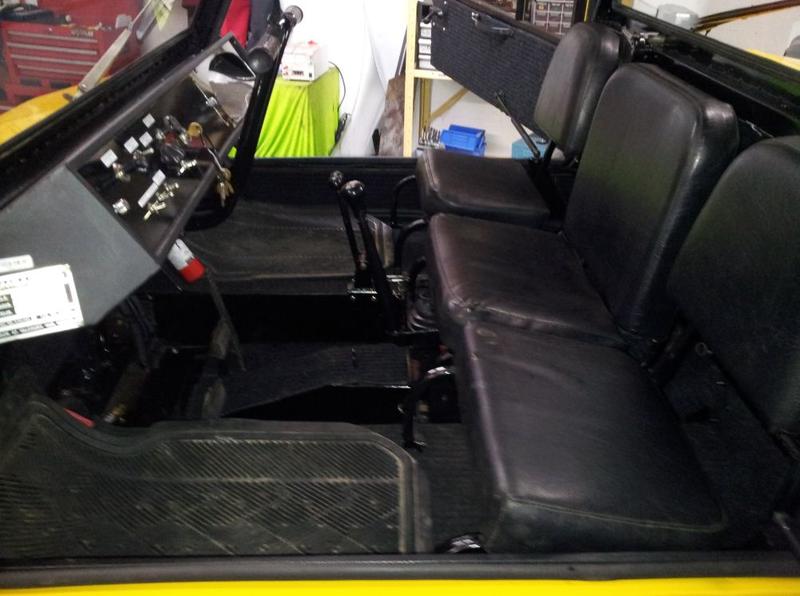

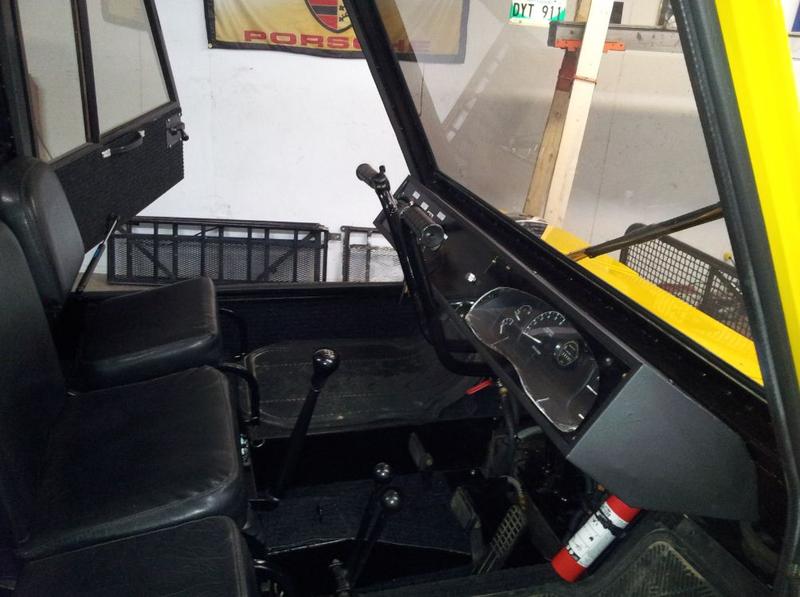

And now photos of interior. New upholstery and dash.
Doors, glasses and spots are back.



[Snowtrac Nome]

now it's a br100 plus with the 2300 motor. i would love to test rrive it with that engine trans combo



[928mr2]

here is a photo of something I made to know easier the level of diff oil.
This photo was taken before paint and new upholstery,
I welded a dipstick on the diff cover and made marks



[928mr2]

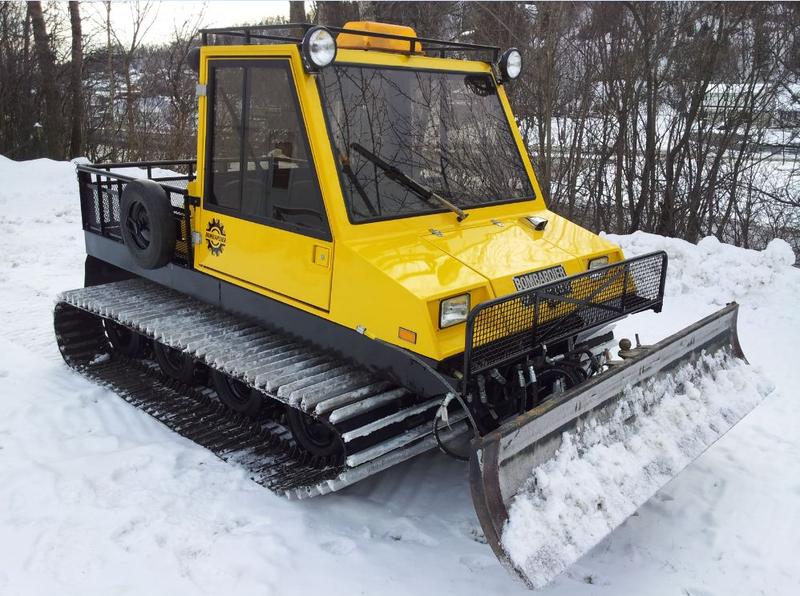

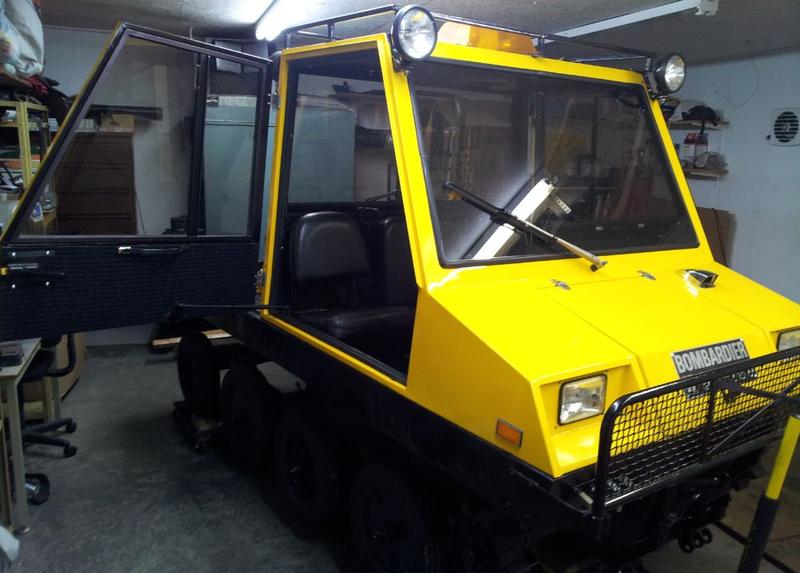

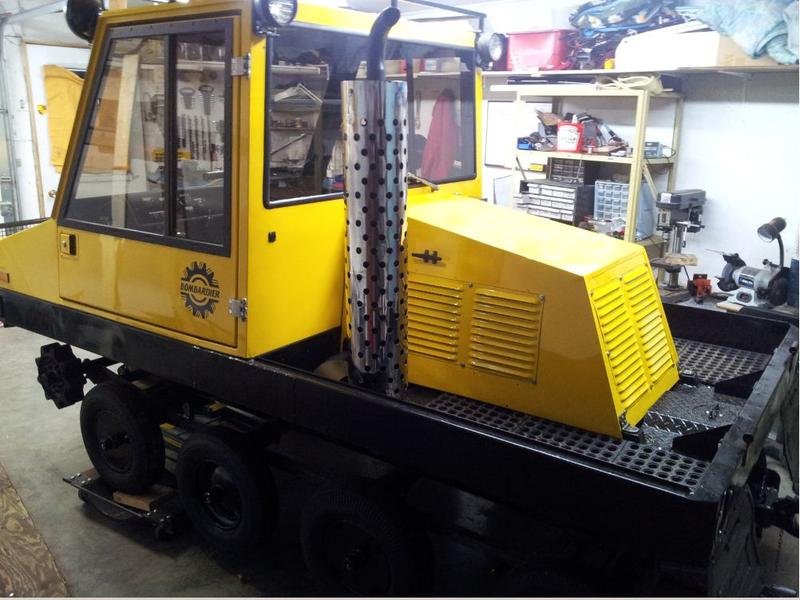

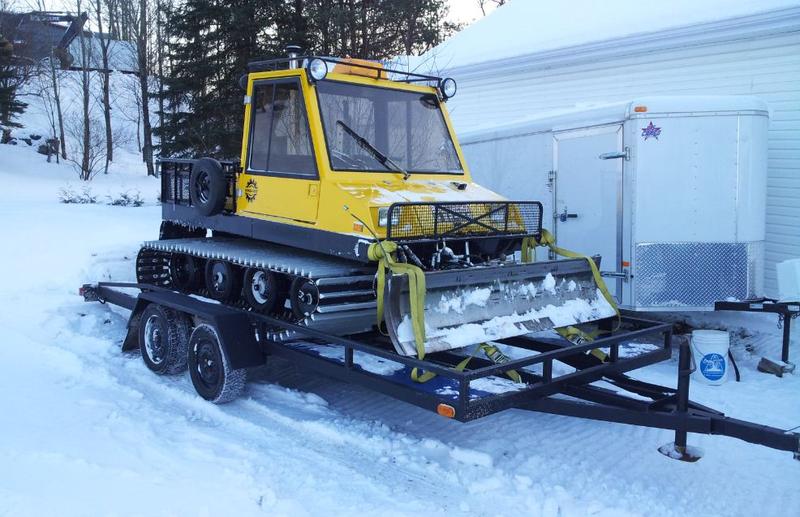

And now photos of the final product including on the trailer after road tests.
No major problem just a few dings easy to fix



[928mr2]

now it's a br100 plus with the 2300 motor. i would love to test rrive it with that engine trans combo

Exactly BR100+ but with manual tranny. It's very strong almost twice hp's and torque. Altough it stays a work machine, slow but strong and a bit noisy when pushed.



[928mr2]

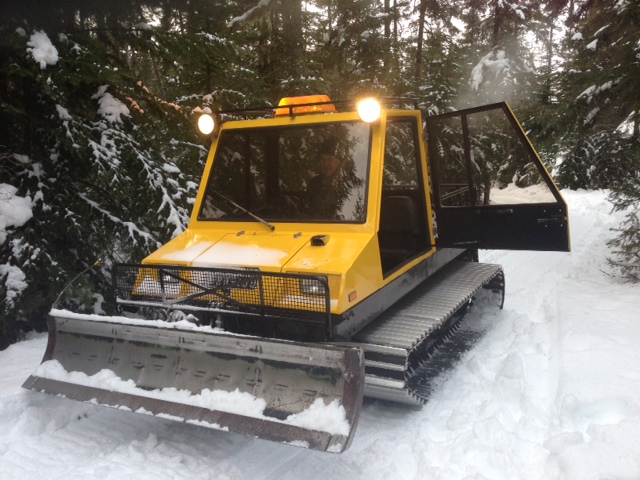

heres a link on youtube of a short video at winter cabin:

https://www.youtube.com/watch?v=hZXnvatJnHA

I started in 2nd gear, shifted in 3 then in 4th.
Nice sound ehh?



[Nathan R]

Nice work. Looks like a million bucks.



[pixie]

Fantastic job !
That wiring harness looks like a nightmare to deal with.
Congrats on a job well done



[928mr2]

Thank's for your comments. For me it's not work but pleasure

I would like to mention that I had help from one of my brothers who's a top welder. Without him I could'nt realize my crazy projects

For the harness it was the easiest for me since i'm an electronic technician. I had to depend on no one for that step. It took a long time but went well.

The calk-ice are still missing on my tracks. I sent them to be fixed and welded and I'll put them back on.
I hope this post will help others who want infos and photos about BR100's



[longbed454]

Very nice work



[300 H and H]

Excellent work and a great machine as a result. My bet is that Bombi will be around for a very long time too...

Regards, Kirk



[Northcoast]

I'm with Pixie,the wiring harness would have been a total nightmare for me ! Beautiful restoration,especially with all the improvements. Way Cool !!



[1bigguy]

Great job must have been good therapy.



[Nikson]

Thank's for your comments. For me it's not work but pleasure

Pleasure it is... isnt it...

Great report, thanks for sharing the pictures... Love to see great work done, came out really nice.



[928mr2]

Thanx for good comments



[snowcatt]

Hi
What did you do with the old motor and trany



[928mr2]

I sold them for about $200



[Darryld]

Hello~ I recently purchased a 1982-1984 ( not exact on the year yet)

Bombardier Bombi BR-100 and was very impressed with your postings of

the restoration.

I am interested in finding some Manuals .. both parts and maintenance for

this machine. Can you give me some links or places to visit to obtain them.

Either could be downloadable or purchase manuals.

Thanks,
Darryl
